Features

Page Skeleton is a webpack plugin.The purpose of the plugin is to generate the corresponding skeleton screen page according to different route pages in your project, and to pack the skeleton screen page into the corresponding static route page through webpack.

• Support multiple loading animations
• Preview on mobile
• Support multiple routes
• Can be customized, and also directly modify the skeleton page source code in the preview page
• Almost zero configuration available

Loading animations

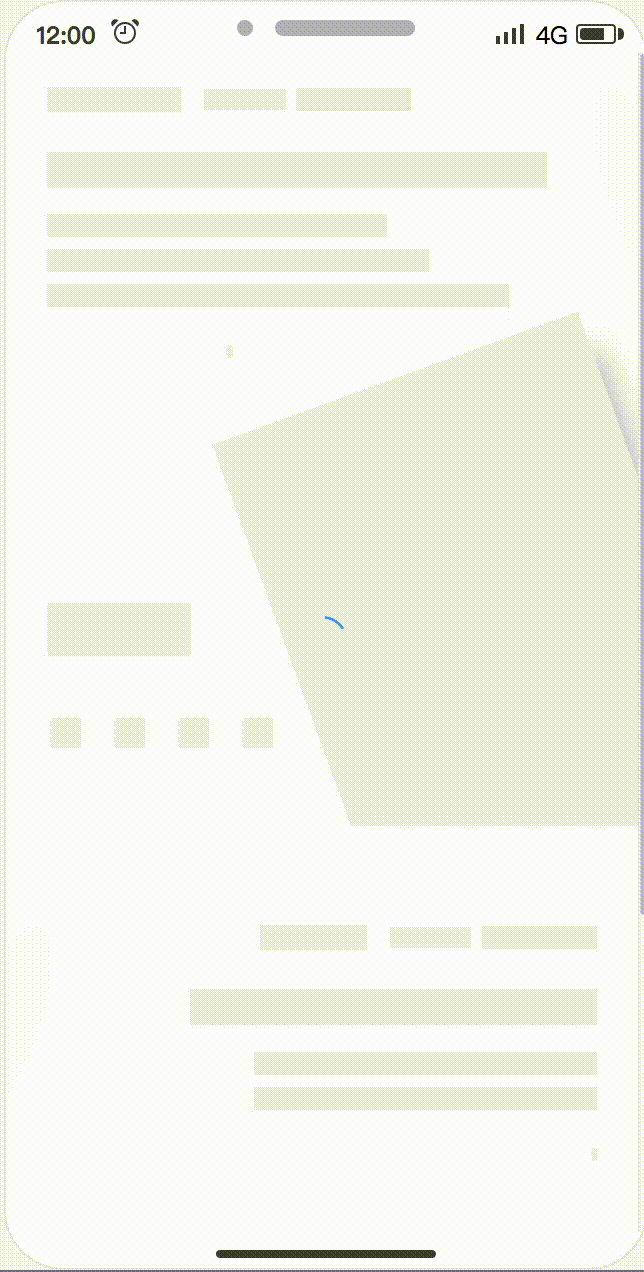

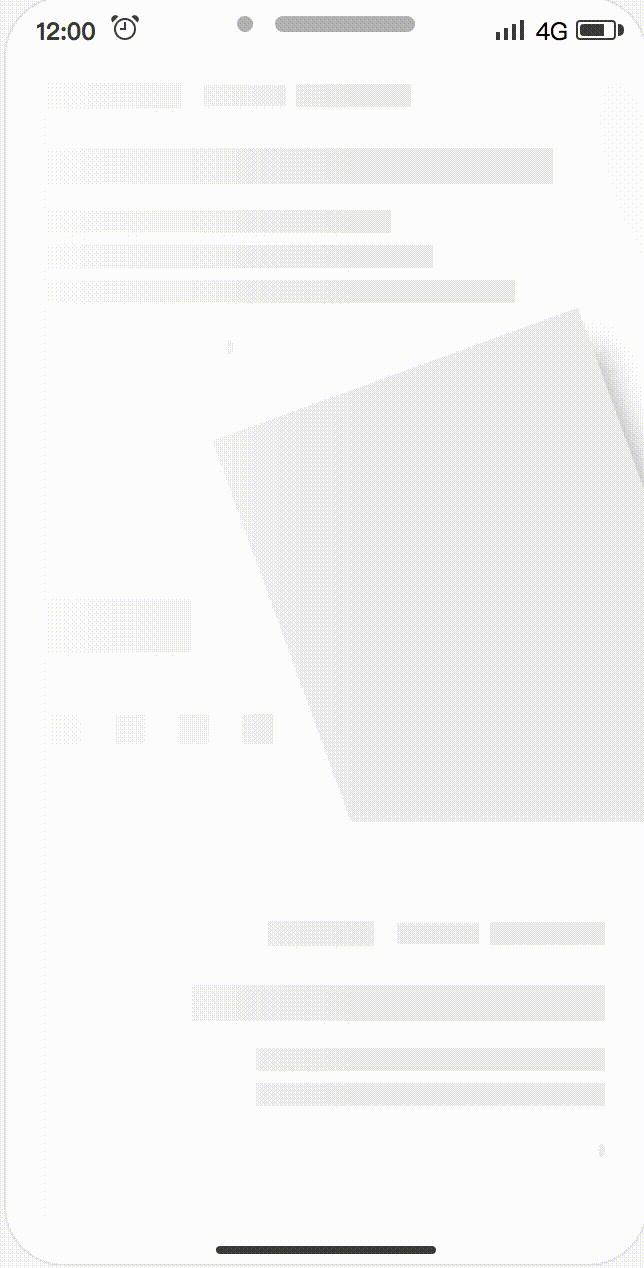

Spin	Shine	Chiaroscuro

speed up play

Examples

All examples are in the examples folder.

• sale

Installation

Use npm to install this plugin, and you also need to install html-webpack-plugin.

npm install --save-dev page-skeleton-webpack-plugin

npm install --save-dev html-webpack-plugin

Basic Use

Step 1：configration

After installing the plug-in according to the above tutorial, you need to configure the plugin so that the plugin can run normally. The plugin will perform different operations depending on the environment of the node. When NODE_ENV === 'development', the plug-in can perform operations for generating and writing skeleton pages.

const HtmlWebpackPlugin = require('html-webpack-plugin')
const { SkeletonPlugin } = require('page-skeleton-webpack-plugin')
const path = require('path')
const webpackConfig = {
  entry: 'index.js',
  output: {
    path: __dirname + '/dist',
    filename: 'index.bundle.js'
  },
  plugin: [
    new HtmlWebpackPlugin({
       // Your HtmlWebpackPlugin config
    }),
    new SkeletonPlugin({
        pathname: path.resolve(__dirname, `${customPath}`), // the path to store shell file
        staticDir: path.resolve(__dirname, './dist'), // the same as the `output.path`
        routes: ['/', '/search'], // Which routes you want to generate skeleton screen
    })
  ]
}

:notebook_with_decorative_cover:Since the plugin selects different operations based on the process.env.NODE_ENV environment variable, so you need to configurate environment variables in the scripts option in the package.json file as follows:

"scripts": {
  "dev": "cross-env NODE_ENV=development node server.js",
  "build": "rm -rf dist && cross-env NODE_ENV=production webpack --progress --hide-modules"
}

That is, setting NODE_ENV to development in the development environment and NODE_ENV to production in the production environment.

Step 2：Modify template index.html of html-webpack-plugin

Add comment <!-- shell --> in the root element of you application.

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>Document</title>
</head>
<body>
  <div id="app">
    <!-- shell -->
  </div>
</body>
</html>

Step 3：Operations and write shell

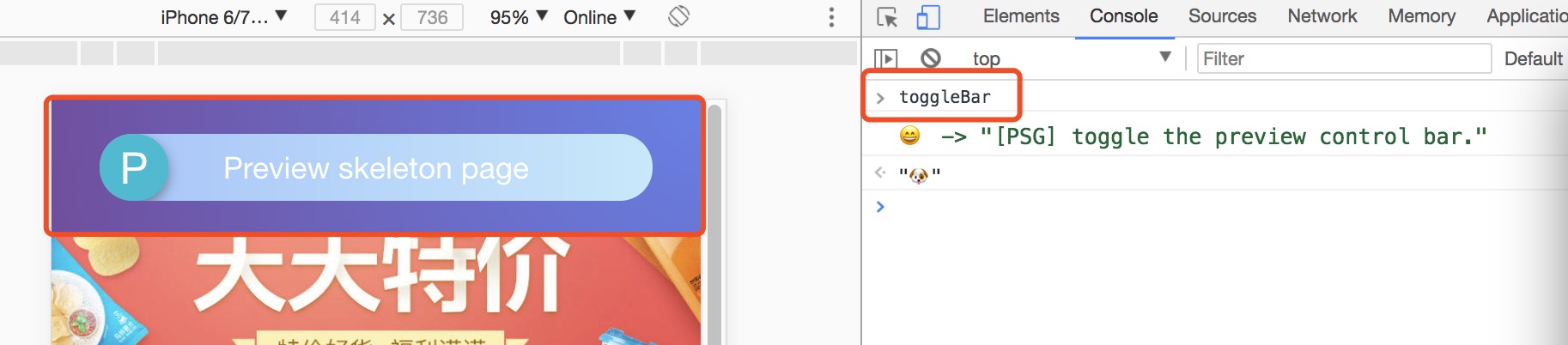

In the development page, use CtrlOrCmd + enter to call out the plugin interactive interface, or enter the toggleBar callout interface in the browser's JavaScript console.

Click the button in the interactive interface to preview the skeleton page. This process may take about 20s. After the plugin is ready for the skeleton page, it will automatically open the preview page through the browser, as shown below.

Scan the QR code in the preview page to preview the skeleton page on the mobile phone. You can directly edit the source code on the preview page. Write the skeleton page into the shell.html file by clicking the Write button in the upper right corner.

Re-package the application with webpack. When the page is restarted, you can see the application's skeleton structure before getting the data.

Documents

Server Options

Skeleton Page Options

Puppeteer Options

Default options

const pluginDefaultConfig = {
  port: '8989',
  text: {
    color: '#EEEEEE'
  },
  image: {
    shape: 'rect', // `rect` | `circle`
    color: '#EFEFEF',
    shapeOpposite: []
  },
  button: {
    color: '#EFEFEF',
    excludes: []
  },
  svg: {
    color: '#EFEFEF',
    shape: 'circle', // circle | rect
    shapeOpposite: []
  },
  pseudo: {
    color: '#EFEFEF', // or transparent
    shape: 'circle' // circle | rect
  },
  device: 'iPhone 6 Plus',
  debug: false,
  minify: {
    minifyCSS: { level: 2 },
    removeComments: true,
    removeAttributeQuotes: true,
    removeEmptyAttributes: false
  },
  defer: 5000,
  excludes: [],
  remove: [],
  hide: [],
  grayBlock: [],
  cookies: [],
  storagies: {},
  sessionStoragies: {},
  cssUnit: 'rem',
  decimal: 4,
  logLevel: 'info',
  quiet: false,
  noInfo: false,
  logTime: true
}

Contribution

The project is under active development. If you have any questions, please submit your issues. Please refer to the issue template to submit the issue. If you are fixing a bug in the issues, please discuss it in the issue before submit the PR. If it is a new feature, submit a feature-related issue first before submit the PR.

There are three main development folders in the project:

• client: Used to communicate between development projects and plugin server.
• preview: The code of the preview page.
• src: plugin server code.
  • script: script to generate the skeleton page.

Special thanks to @Yasujizr who designed the banner of Page Skeleton.

Maintainer

License

MIT.

Copyright (c) 2017-present, @ElemeFE
