imthenachoman/pfSense-Firewall-Rules-Manager

pfSense Firewall Rules Manager

A GAS web-app to manage pfSense FW rules from a Google Sheets spreadsheet

• overview
• screenshots
• to use
• how it works
• to do
• about Google Apps Script, permissions, and security
• self-publish
• disclaimer and warnings
• contact, support, help

overview

I am not a fan of the pfSense rule editor. I like having all of my rules in one table.

So I wrote a Google Apps Script web-app to make it easier for me to view the rules I have and to create new rules. I wrote this for myself and thought others might be interested so I am sharing with others.

The app lets you:

• convert the firewall rules from pfSense's Backup & Restore XML file into a CSV or Google Sheet; you can:
  • upload the XML file or manually enter it
  • create a new Google Sheet, use an existing one, or get the CSV string
• convert a CSV or Google Sheet table back to an XML file that you can import into pfSense; you can:
  • select a Google Sheet, upload a CSV file, or manually enter the CSV

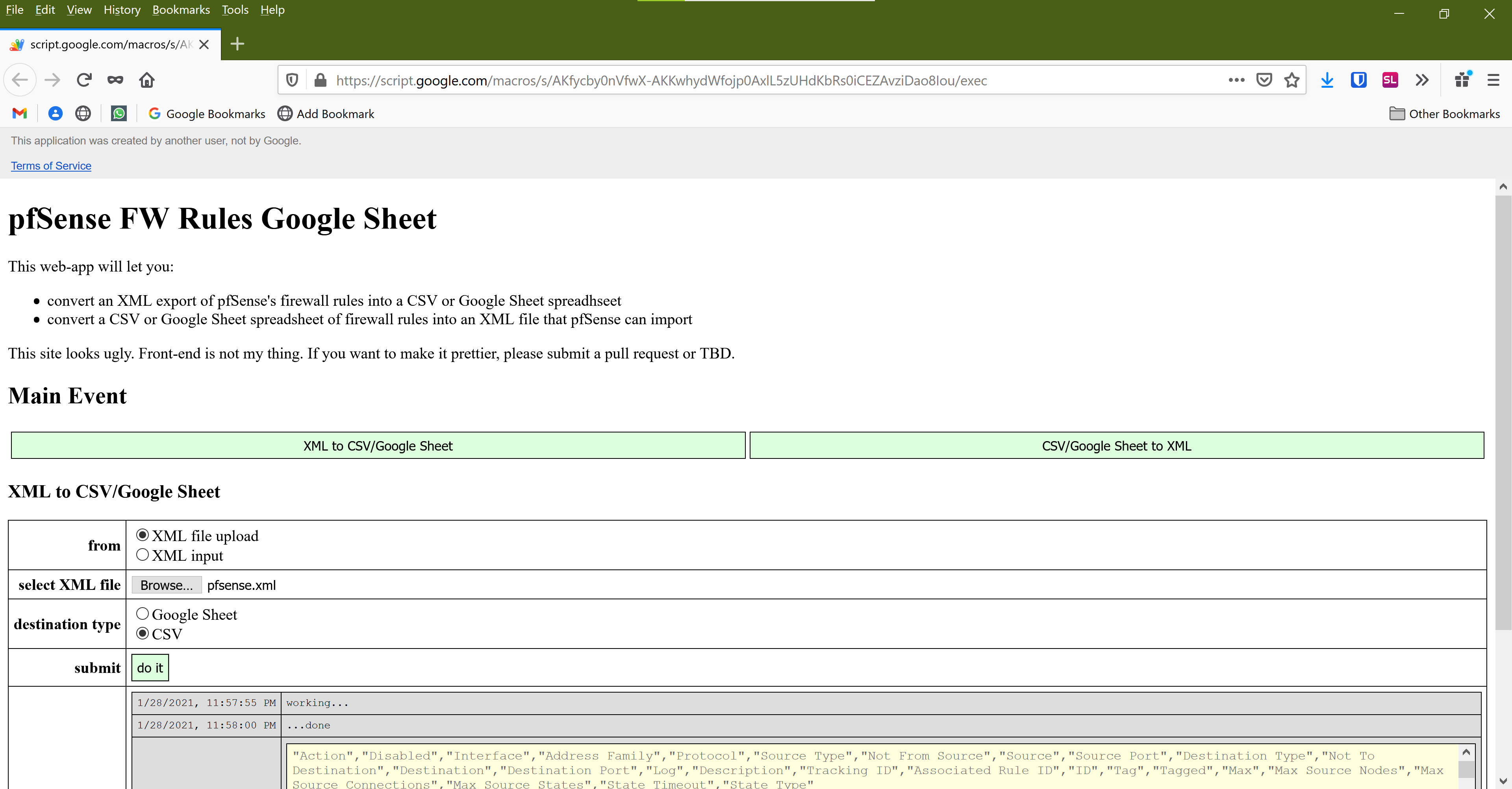

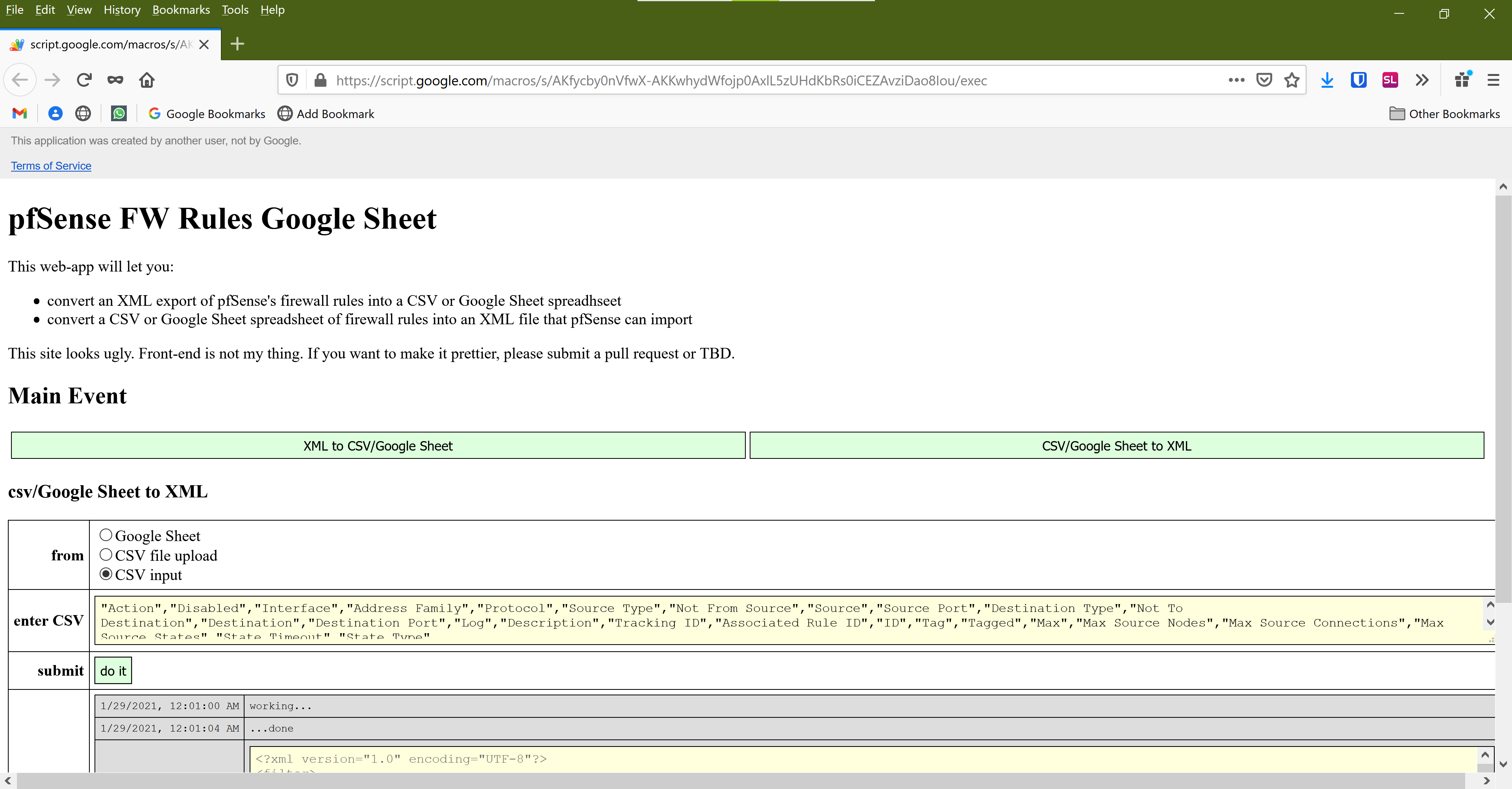

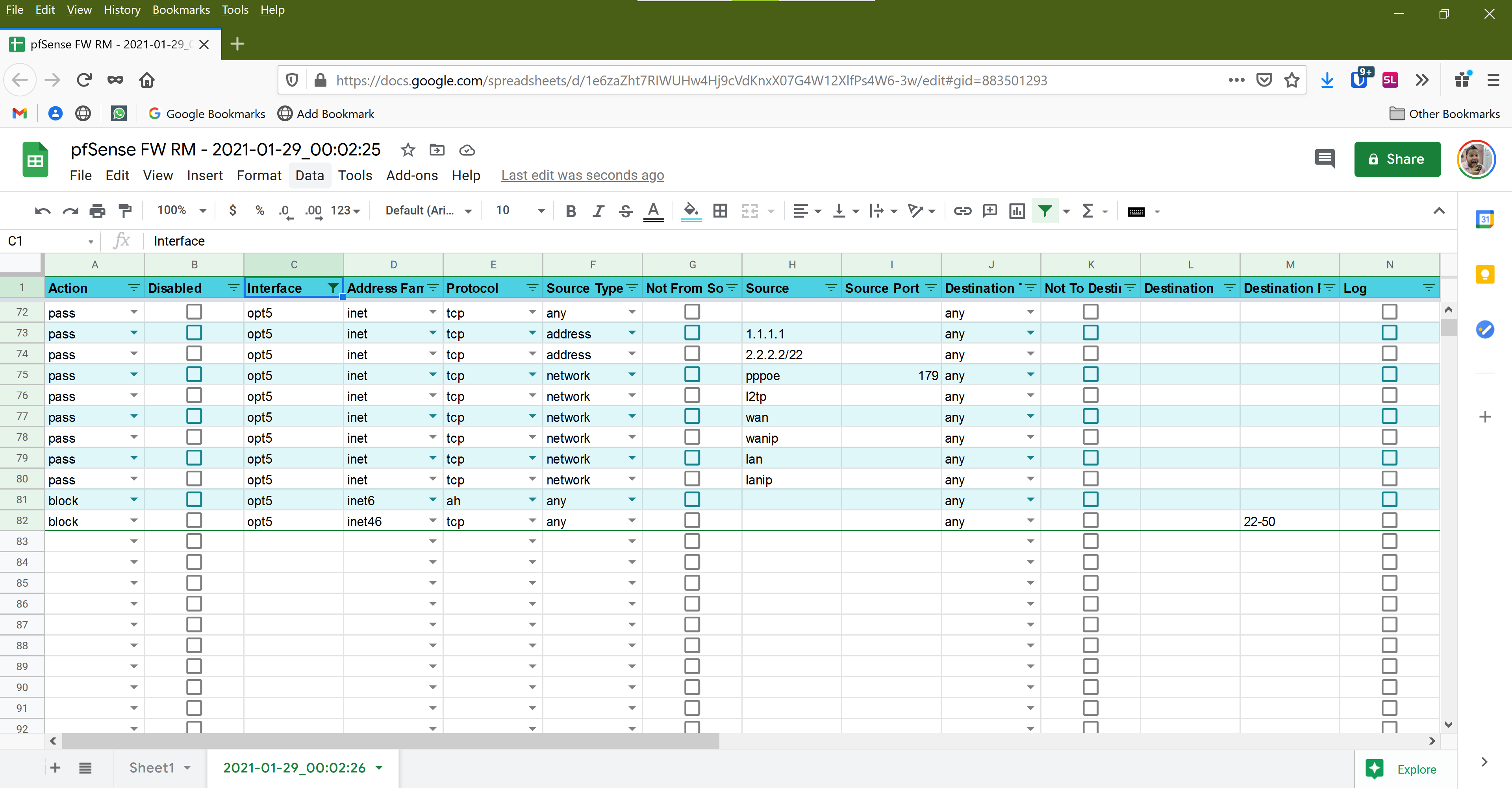

screenshots

to use

You have two options:

• you can use the one I published at https://script.google.com/macros/s/AKfycby0nVfwX-AKKwhydWfojp0AxlL5zUHdKbRs0iCEZAvziDao8Iou/exec (see about Google Apps Script, permissions, and security)
• self-publish your own copy

how it works

• the app parses pfSense's Backup & Restore XML file into a table
• I recommend exporting your configuration from pfSense and then importing them with this app to see how the data is stored
• then you can copy data from other rows to create new firewall rules

to do

• download CSV/XML file

about Google Apps Script, permissions, and security

For those who are not familiar with Google Apps Script:

• Google Apps Script web-apps can be published in many ways
• you can read more about this at https://developers.google.com/apps-script/guides/web#permissions
• mine is published with (screenshot):
  • Execute the app as: User accessing the web app
  • Who has access to the app: Anyone
• this means that when you go to the app, it will run under your Google account
• this is so the app can read/write Google Sheet files from your account
• I personally cannot access your Google account, the app can
• you can see the code yourself to make sure the app is not doing anything nefarious like reading your Google files/emails and sending them to me
• the first time you go to the app, it will ask you to authorize the app to run as you
• if you do not trust me, you can go the self-publish route

self-publish

These instructions require a little knowledge/understanding of Google Apps Script. There are many articles online about it if you get lost.

1. Create a new script by going to https://script.google.com/home/projects/create
2. You will need to create 3 files in your project and copy the contents from the files in this repos:
   • web app.gs => https://github.com/imthenachoman/pfSense-Firewall-Rules-Manager/blob/main/web%20app.js
   • xml rule schemas.gs => https://github.com/imthenachoman/pfSense-Firewall-Rules-Manager/blob/main/xml%20rule%20schemas.js
   • index.html => https://github.com/imthenachoman/pfSense-Firewall-Rules-Manager/blob/main/index.html
3. Save the project and deploy as a web app with these settings:
   • Execute as: User accessing the web app
   • Who has access: either option
4. Then go to the URL of your deployed web-app.

disclaimer and warnings

• Please use at your own discretion. This app comes with no warranty. I am not responsible for anything resulting from this app.
• it is rather dumb in that it is not aware of your pfSense configuration, like what VLANs you have, what your IPs are, etc...; it only knows what it sees in the XML file
• not all pfSense firewall rule settings are included (...yet)

Remember to make a backup of your pfSense configuration.

contact, support, help

Submit a new issue at https://github.com/imthenachoman/pfSense-Firewall-Rules-Manager/issues/new.
