mrgoonie/winshot

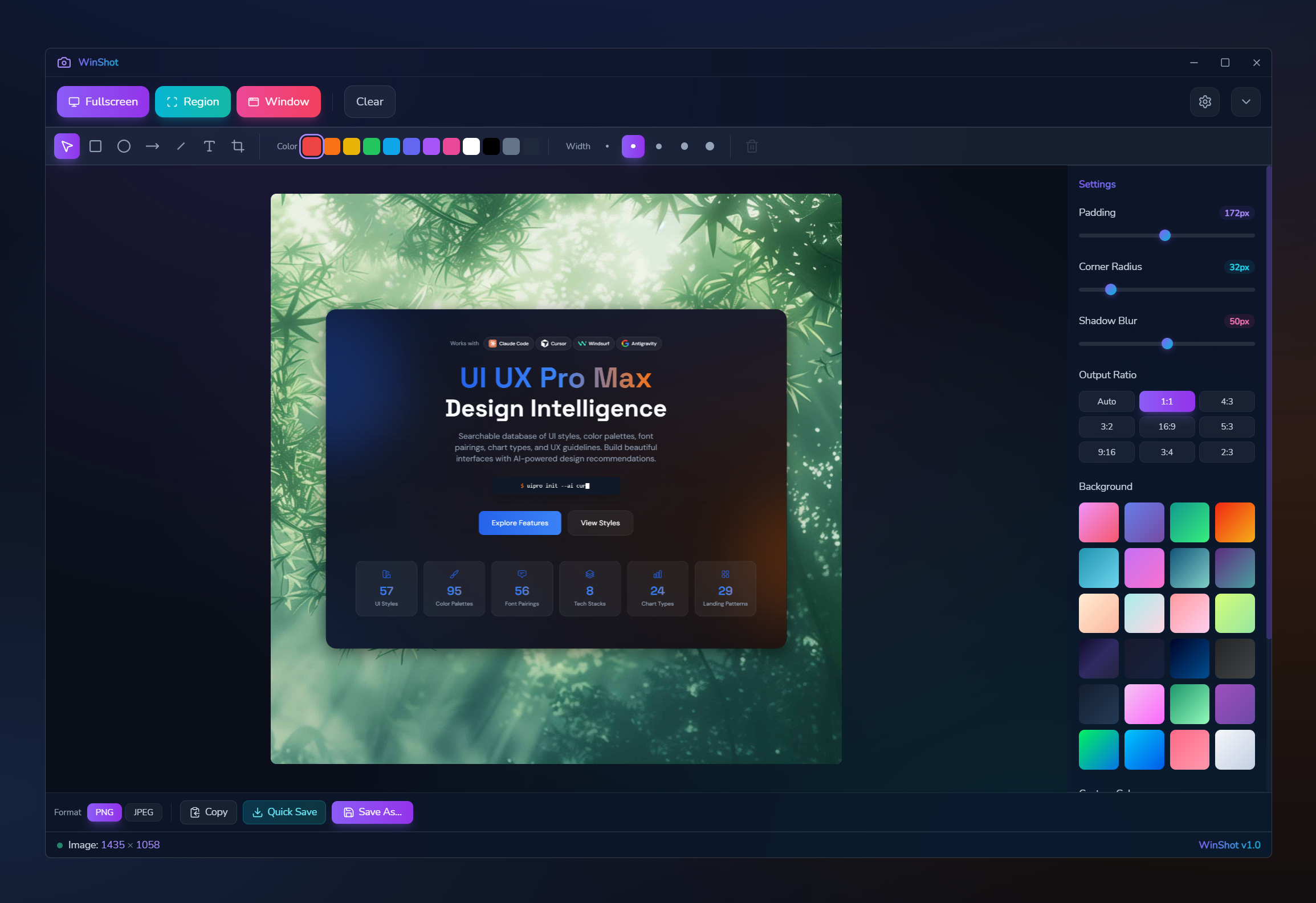

WinShot - Modern Screenshot Tool for Windows

A lightweight, feature-rich screenshot application built with Wails (Go + React). Capture, annotate, and export screenshots with a beautiful glassmorphism UI.

90% smaller than Electron (~10MB) | Native performance | Rich annotation tools

---

Features

Capture Modes

• Fullscreen - Capture all displays in one image
• Region - Drag to select custom rectangle
• Window - Automatically detect and capture active window
• Hotkey Triggered - Global shortcuts (Ctrl+PrintScreen, etc.)

Annotations

• Shapes - Rectangle, ellipse (with fill/stroke control)
• Arrows & Lines - Directional callouts and custom lines
• Text - Add text with customizable font, size, color, alignment
• Numbers - Auto-incrementing numbered markers for step-by-step callouts
• Spotlight - Highlight areas by dimming surroundings
• Transforms - Move, resize, rotate all elements
• Non-destructive - Edit or delete annotations anytime

Editor Features

• Non-destructive cropping - Adjust bounds without losing data
• Aspect ratio presets - Free, 16:9, 4:3, 1:1, 9:16, 3:4
• 24 gradient backgrounds - Vibrant glassmorphism presets
• Real-time preview - See changes instantly
• Settings persistence - Editor preferences saved across sessions

Export Options

• Formats - PNG (lossless) and JPEG (with quality slider)
• Output ratios - 9 presets for different platforms
• Quick Save - Save to configured folder with auto-naming
• Background control - Include or exclude gradient backgrounds

System Integration

• System tray - Icon in taskbar for quick access
• Global hotkeys - Customizable keyboard shortcuts
• Auto-start option - Launch on Windows startup
• Minimize to tray - Keep window out of the way

---

Installation

Option 1: Portable Executable (Recommended)

1. Download winshot.exe from GitHub Releases
2. Run directly - no installation required
3. Optionally pin to taskbar or create shortcut

Requirements:

• Windows 10 or later
• WebView2 runtime (pre-installed on Windows 11, automatic install on Windows 10)

Option 2: Installer

1. Download winshot_installer.exe from GitHub Releases
2. Run installer and follow prompts
3. Shortcuts created in Start menu and optional desktop

---

Quick Start

Basic Workflow

1. Launch WinShot (portable EXE or via Start menu)
2. Capture screenshot using one of:
   • Click toolbar buttons (Fullscreen, Region, Window)
   • Press global hotkey (default: Ctrl+PrintScreen for region)
   • Right-click system tray icon
3. Annotate (optional):
   • Select annotation tool from toolbar
   • Draw on screenshot
   • Adjust colors and stroke width
4. Crop (optional):
   • Switch to crop mode
   • Select desired area and aspect ratio
5. Export:
   • Choose PNG or JPEG format
   • Click Export or Quick Save
   • Confirm location (or auto-save to configured folder)

Keyboard Shortcuts

Global Hotkeys (Customizable):

Customizable in Settings → Hotkeys

Editor Shortcuts (App Window):

---

Configuration

Settings Dialog

Access via Settings icon in title bar (⚙️).

Tabs:

Hotkeys

• Fullscreen - Default: PrintScreen
• Region - Default: Ctrl+PrintScreen
• Window - Default: Ctrl+Shift+PrintScreen
• Custom key combinations supported

Startup

• Launch on startup - Auto-start WinShot on Windows boot
• Minimize to tray - Start minimized instead of maximized
• Show notifications - Display toast when screenshot is saved

Quick Save

• Folder - Default: %USERPROFILE%\Pictures\WinShot
• Filename pattern - Options: timestamp, date, increment

Export

• Default format - PNG or JPEG
• JPEG quality - 0-100 slider (default: 95)
  • 95+ = visually lossless
  • 75-90 = balanced (recommended)
  • 50-75 = compressed (smaller files)
• Include background - Apply gradient to exported image

Editor Settings

Panel on right side of editor (collapsible):

• Padding - Space around screenshot
• Corner radius - Rounded corners (0-50px)
• Shadow size - Drop shadow depth (0-30px)
• Background - Select from 24 gradient presets or custom color

All settings persist in browser localStorage and survive app restarts.

---

Development

Prerequisites

• Go 1.24.0+
• Node.js 18+
• Wails CLI - Install: go install github.com/wailsapp/wails/v2/cmd/wails@latest
• WebView2 Runtime - Pre-installed on Windows 11, or manual install on Windows 10

Setup

# Clone repository
git clone https://github.com/[owner]/winshot.git
cd winshot

# Install frontend dependencies
cd frontend
npm install
cd ..

# Verify Wails setup
wails doctor

Development Server

# Run with hot reload
wails dev

This starts the app with:

• Frontend: Vite dev server (auto-reload on code changes)
• Backend: Recompile on Go file changes
• Open in Wails dev window

Frontend only:

cd frontend
npm run dev

Backend only:

wails build
./winshot.exe

Build

Portable Executable:

wails build
# Output: ./build/bin/winshot.exe (~10-15MB)

Installer (NSIS):

wails build -nsis
# Output: ./build/bin/winshot_installer.exe

Release Build (optimized):

wails build -upx
# Smaller binary (~7-10MB) using UPX compression

Project Structure

.
├── app.go                          # Wails bindings (Go)
├── main.go                         # Entry point
├── wails.json                      # Wails config
├── go.mod / go.sum                 # Go dependencies
├── frontend/
│   ├── src/
│   │   ├── App.tsx                 # Root React component
│   │   ├── components/             # React components (14 total)
│   │   ├── types/                  # TypeScript interfaces
│   │   └── assets/                 # Images, fonts
│   ├── package.json
│   ├── vite.config.ts
│   ├── tailwind.config.js
│   └── tsconfig.json
├── internal/                       # Go packages
│   ├── config/                     # Config persistence
│   ├── hotkeys/                    # Global hotkey registration
│   ├── screenshot/                 # Screen/window capture
│   ├── tray/                       # System tray integration
│   └── windows/                    # Window enumeration
├── docs/                           # Documentation
└── build/                          # Build assets & output

---

Architecture

Backend (Go)

Key Packages:

• internal/config - JSON config persistence
• internal/hotkeys - Global hotkey registration via Win32 API
• internal/screenshot - Multi-display screen capture
• internal/tray - System tray icon + context menu
• internal/windows - Window enumeration

Wails Bindings: 25+ methods exposed to frontend via automatic Go→TypeScript binding.

Frontend (React)

Technology Stack:

• React 18.2 + TypeScript
• react-konva 18.2 for canvas drawing
• Tailwind CSS 3.4 for styling
• Vite 3.0 for build tooling

Components:

• App.tsx - Central state management
• 14 specialized components for UI, toolbars, dialogs, canvas

State Management: React hooks (useState, useEffect, useCallback) + localStorage for persistence.

Communication

Frontend ↔ Go via Wails IPC (automatic JSON serialization).

Example:

// Frontend
const result = await CaptureFullscreen()
// Automatically calls Go method, returns JSON-deserialized CaptureResult

See docs/system-architecture.md for detailed architecture diagrams.

---

Tech Stack

---

Contributing

Contributions welcome! Please:

1. Fork the repository
2. Create feature branch: git checkout -b feature/amazing-feature
3. Commit changes: git commit -m 'Add amazing feature'
4. Push to branch: git push origin feature/amazing-feature
5. Open Pull Request

Guidelines:

• Follow code standards
• Update tests for new features
• Update documentation as needed
• Keep commits focused and descriptive

---

Roadmap

v1.0 (Completed)

• Basic capture modes
• Simple annotations
• PNG export
• Configuration dialog

v1.2 (Completed)

• Undo/redo ✓
• Keyboard shortcuts ✓
• Clipboard import ✓
• JPEG quality control ✓

v1.3 (Planned)

• Dark/light theme toggle
• Batch export operations
• Cloud sync for settings

v2.0 (Future)

• Screen recording
• OCR text extraction
• Cloud sync for settings
• macOS/Linux support

See docs/project-overview-pdr.md for detailed roadmap.

---

Troubleshooting

Common Issues

Global hotkeys not working

• Ensure app has focus once (may require privilege elevation)
• Check Settings → Hotkeys for conflicts with other apps
• Try alternative key combinations

Screenshots appear blurry

• Confirm DPI scaling in Windows Settings (125%, 150%)
• App handles DPI automatically; if issues persist, file a bug report
• Use JPEG export with lower quality for smaller files

App crashes on startup

• Delete %APPDATA%\WinShot\config.json to reset configuration
• Check if WebView2 runtime is installed (Windows 10)
• Restart computer and try again

Export takes too long

• Large images (4K+) may take 500-800ms
• Reduce output size via aspect ratio control
• Use JPEG format for faster export than PNG

Debug Mode

Enable debug logging:

wails dev  # Prints Go errors and exceptions to console

---

License

BSD 3-Clause License

See LICENSE file for details.

---

Support & Feedback

• Issues: GitHub Issues
• Discussions: GitHub Discussions
• Reddit: /r/winshot (TBD)
• Discord: Invite link (TBD)

---

Acknowledgments

• Wails - Desktop framework
• kbinani/screenshot - Screen capture
• react-konva - Canvas library
• Tailwind CSS - Styling framework

---

Changelog

v1.2 (2025-12-24)

• ✨ Clipboard image import via Ctrl+V
• ✨ Configurable JPEG compression quality (0-100 scale)
• ✨ Comprehensive keyboard shortcuts for all tools
• ✨ Tool selection via single-key shortcuts (V, R, E, A, L, T, C)
• ✨ Editor annotations with Undo/Redo shortcuts
• 🚀 Performance improvements for clipboard operations
• 📝 Enhanced documentation with keyboard reference

v1.1 (2025-12-03)

• ✨ Add arrow and line annotations
• ✨ Add text annotation tool
• ✨ Implement non-destructive cropping
• ✨ Add 24 gradient background presets
• ✨ Support multiple output aspect ratios
• ✨ Copy file path button + auto-copy on quick save
• 🚀 Performance improvements for large images
• 📝 Complete documentation suite

v1.0 (2025-11-01)

• 🎉 Initial release
• ✅ Fullscreen, region, and window capture
• ✅ Rectangle and ellipse annotations
• ✅ PNG export
• ✅ Configuration dialog
• ✅ System tray integration
• ✅ Global hotkey support

---

Made with ❤️ for screenshot enthusiasts
