sqshq/categolj2-backend

CategolJ2 Backend

CategoljJ2 is a micro blog system. This backend provides REST API for blog system and admin console to manage these data. You can create any blog frontend using this APIs ;)

The following technologies are used.

• Java 8
• Spring Boot 1.2
  • Spring 4.1
  • Spring MVC
  • Spring Security OAuth
  • Spring Data JPA
  • JPA 2.1
  • Flyway
  • ThymeLeaf
• Hibernate Search
• React.js
• Backbone.js
• ...

Normal launch

Download categolj2-backend.jar (0.20.0+) from release page. This jar is executable by Spring Boot.

Note that CategoLJ2 requires Java8.

Simple usage

$ java -Xms512m -Xmx1g -jar categolj2-backend.jar --server.port 8080

Access

• Backend
  • http://localhost:8080/admin
  • login with initial account (admin/demo)
• Sample frontend
  • http://localhost:8080
  • see Setup frontend to customize frontend screen.

CategoLJ2 supports H2 and MySQL and embedded H2 is used as default.

You can change H2 data location as following:

$ java -Xms512m -Xmx1g -jar categolj2-backend.jar --server.port 8080 --categolj2.h2.datadir=./foobar

When you would like to use MySQL then:

$ java -Xms512m -Xmx1g -jar categolj2-backend.jar --server.port 8080 --spring.jpa.database=MYSQL --spring.datasource.driverClassName=com.mysql.jdbc.Driver --spring.datasource.url=jdbc:mysql://localhost:3306/categolj2?zeroDateTimeBehavior=convertToNull --spring.datasource.username=root --spring.datasource.password=password

In this case, you have to run create database categolj2 using mysql command in advance.

Other properties are explained in Configurable properties.

Docker Support

If Docker is not installed follow this: https://docs.docker.com/installation/

• Build Application

cd categolj2-backend
(Optional) mvn clean install -f frontend-ui/pom.xml -Dgpg.skip=true
(Optional) mvn clean install -f backend-ui/pom.xml -Dgpg.skip=true
cd backend-api
mvn clean package
cd target
docker build -t categolj2-backend .

• Deploy to Docker Container

docker images # List all Docker images
docker run -p 80:80 -p 443:443 <image id>

Run with deployed Docker image

You can use deployed Docker image.

Run with the following command:

docker run -d \
--name categolj2 \
-p 80:80 \
-p 443:443 \
-v /tmp/categolj2:/tmp \
-v /var/log/categolj2:/var/log/categolj2 \
-e "_JAVA_OPTIONS=-Duser.timezone=JST \
-Xms512m \
-Xmx1g" \
making/categolj2-backend \
--spring.thymeleaf.cache=true \
--log.verbose=WARN \
--logging.level.jdbc.resultsettable=ERROR \
--logging.level.jdbc.sqltiming=ERROR \
--logging.level.org=WARN \
--logging.level.am=WARN \
--logging.level./=WARN \
--logging.level.am.ik.categolj2.App=INFO \
--logging.level.org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter=INFO

Go to http://<Docker Host IP>

In case of using MySQL, docker-compose.yml is really useful.

$ cd backend-api/docker/docker-compose.yml
$ docker-compose up

After this command, MySQL and CategoLJ2 will run and connect ;)

Go to http://<Docker Host IP>

1st log will be as follows:

$ docker-compose up
Creating target_mysql_1...
Creating target_categolj2_1...
Attaching to target_mysql_1, target_categolj2_1
mysql_1     | Running mysql_install_db ...
mysql_1     | 2015-05-06 18:39:46 0 [Note] /usr/sbin/mysqld (mysqld 5.6.24-log) starting as process 13 ...
...
mysql_1     | 2015-05-06 18:40:16 13 [Note] InnoDB: Setting log file ./ib_logfile1 size to 1024 MB
mysql_1     | InnoDB: Progress in MB: 100 200 300 400 500 600 700 800 900 1000
categolj2_1 | Picked up _JAVA_OPTIONS: -Duser.timezone=JST -Djava.awt.headless=false -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/var/log/categolj2/ -Xloggc:/var/log/categolj2/gc.log -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=10M -XX:+UseConcMarkSweepGC -XX:CMSInitiatingOccupancyFraction=80 -XX:MaxTenuringThreshold=10 -XX:ErrorFile=/var/log/categolj2/hs_err_pid%p.log
categolj2_1 |
categolj2_1 | 2015-05-06 18:40:50.642  INFO 1 --- [           main] am.ik.categolj2.App                      : Starting App v1.0.0-SNAPSHOT on 95041a7555f9 with PID 1 (/opt/categolj2-backend/categolj2-backend.jar started by root in /opt/categolj2-backend)
mysql_1     | 2015-05-06 18:40:51 13 [Note] InnoDB: Renaming log file ./ib_logfile101 to ./ib_logfile0
...
mysql_1     | 2015-05-06 18:41:01 1 [Note] Execution of init_file '/tmp/mysql-first-time.sql' started.
mysql_1     | 2015-05-06 18:41:01 1 [Warning] 'proxies_priv' entry '@ root@abc9de9b36f2' ignored in --skip-name-resolve mode.
mysql_1     | 2015-05-06 18:41:01 1 [Note] Execution of init_file '/tmp/mysql-first-time.sql' ended.
mysql_1     | 2015-05-06 18:41:01 1 [Note] mysqld: ready for connections.
mysql_1     | Version: '5.6.24-log'  socket: '/var/run/mysqld/mysqld.sock'  port: 3306  MySQL Community Server (GPL)
categolj2_1 | 2015-05-06 18:41:01.973  INFO 1 --- [           main] am.ik.categolj2.config.InfraConfig       : Check DB availability... (172.17.0.87:3306)
categolj2_1 | 2015-05-06 18:41:02.696  INFO 1 --- [           main] am.ik.categolj2.config.InfraConfig       : OK
categolj2_1 | 2015-05-06 18:41:31.401  INFO 1 --- [           main] o.s.w.s.c.a.WebMvcConfigurerAdapter      : Adding welcome page: jar:file:/opt/categolj2-backend/categolj2-backend.jar!/lib/categolj2-frontend-ui-backbonejs-1.0.0-SNAPSHOT.jar!/META-INF/resources/index.html
categolj2_1 | 2015-05-06 18:41:33.267  INFO 1 --- [           main] am.ik.categolj2.App                      : Started App in 43.453 seconds (JVM running for 73.168)

It will be slow because mysql is initialized.

2nd+ will be the following:

$ docker-compose up
Recreating target_mysql_1...
Recreating target_categolj2_1...
Attaching to target_mysql_1, target_categolj2_1
categolj2_1 | Picked up _JAVA_OPTIONS: -Duser.timezone=JST -Djava.awt.headless=false -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/var/log/categolj2/ -Xloggc:/var/log/categolj2/gc.log -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=10M -XX:+UseConcMarkSweepGC -XX:CMSInitiatingOccupancyFraction=80 -XX:MaxTenuringThreshold=10 -XX:ErrorFile=/var/log/categolj2/hs_err_pid%p.log
categolj2_1 |
mysql_1     | 2015-05-06 18:45:55 0 [Note] mysqld (mysqld 5.6.24-log) starting as process 1 ...
...
mysql_1     | 2015-05-06 18:45:57 1 [Note] mysqld: ready for connections.
mysql_1     | Version: '5.6.24-log'  socket: '/var/run/mysqld/mysqld.sock'  port: 3306  MySQL Community Server (GPL)
categolj2_1 | 2015-05-06 18:46:08.999  INFO 1 --- [           main] am.ik.categolj2.App                      : Starting App v1.0.0-SNAPSHOT on 115ef47bee44 with PID 1 (/opt/categolj2-backend/categolj2-backend.jar started by root in /opt/categolj2-backend)
categolj2_1 | 2015-05-06 18:46:19.909  INFO 1 --- [           main] am.ik.categolj2.config.InfraConfig       : Check DB availability... (172.17.0.90:3306)
categolj2_1 | 2015-05-06 18:46:20.642  INFO 1 --- [           main] am.ik.categolj2.config.InfraConfig       : OK
categolj2_1 | 2015-05-06 18:46:35.776  INFO 1 --- [           main] o.s.w.s.c.a.WebMvcConfigurerAdapter      : Adding welcome page: jar:file:/opt/categolj2-backend/categolj2-backend.jar!/lib/categolj2-frontend-ui-backbonejs-1.0.0-SNAPSHOT.jar!/META-INF/resources/index.html
categolj2_1 | 2015-05-06 18:46:37.982  INFO 1 --- [           main] am.ik.categolj2.App                      : Started App in 29.826 seconds (JVM running for 34.083)

Backend APIs

Supported REST APIs are following.

Admin Console Screenshots

Admin console is a single page application using AJAX/REST API mentioned above.

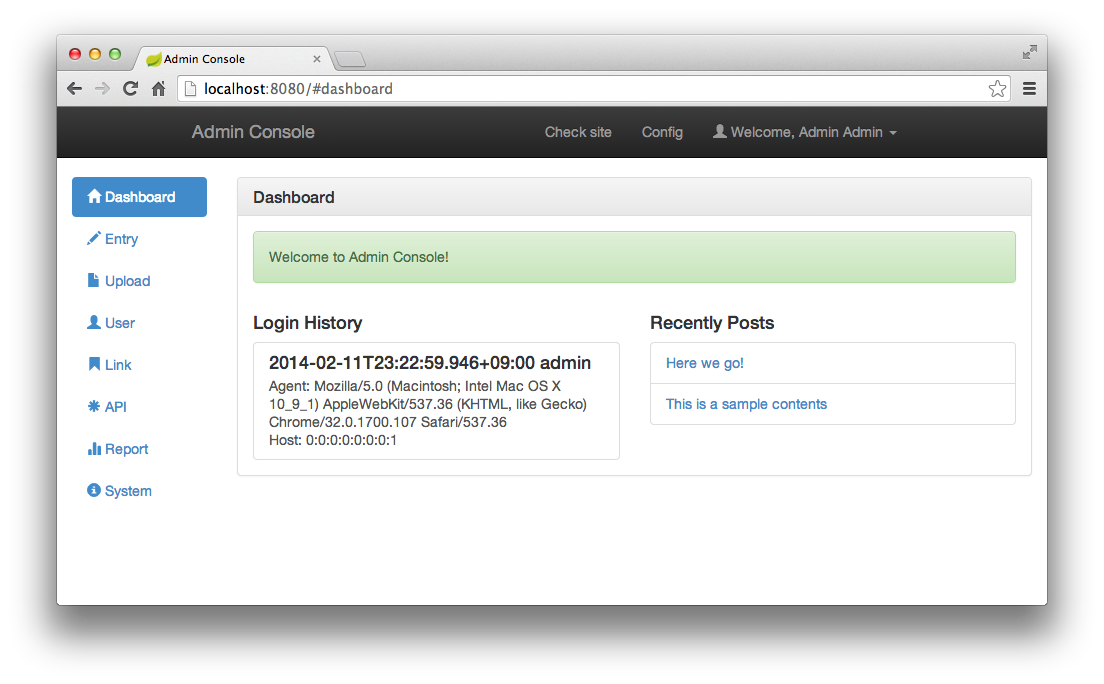

Dashboard

Manage entries

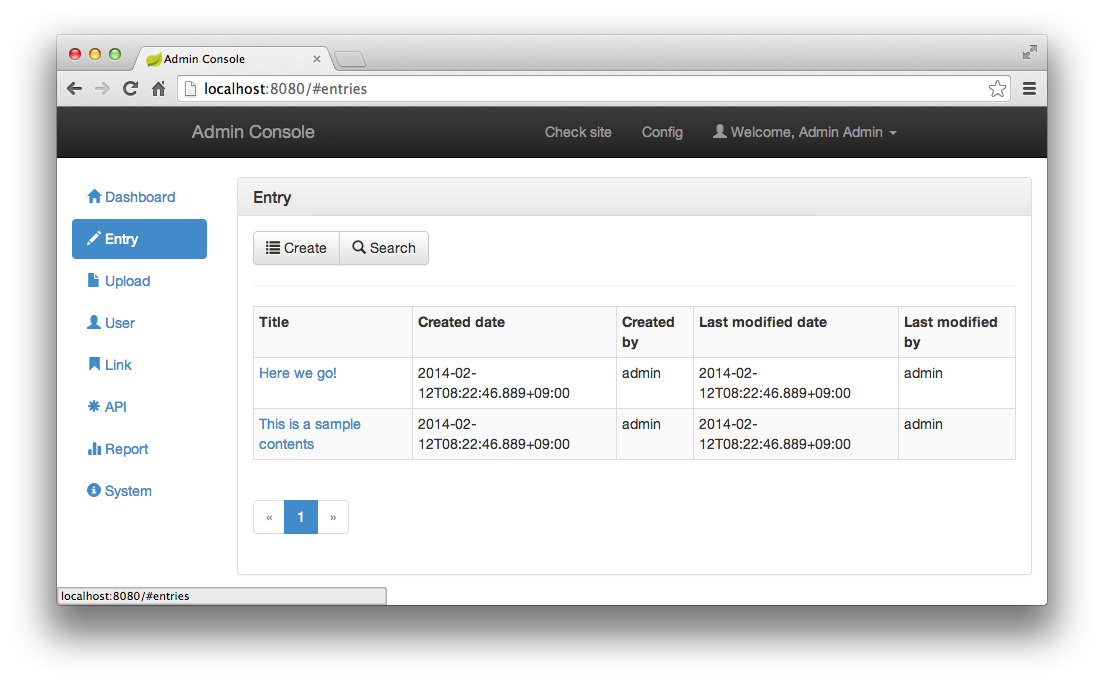

Entry list

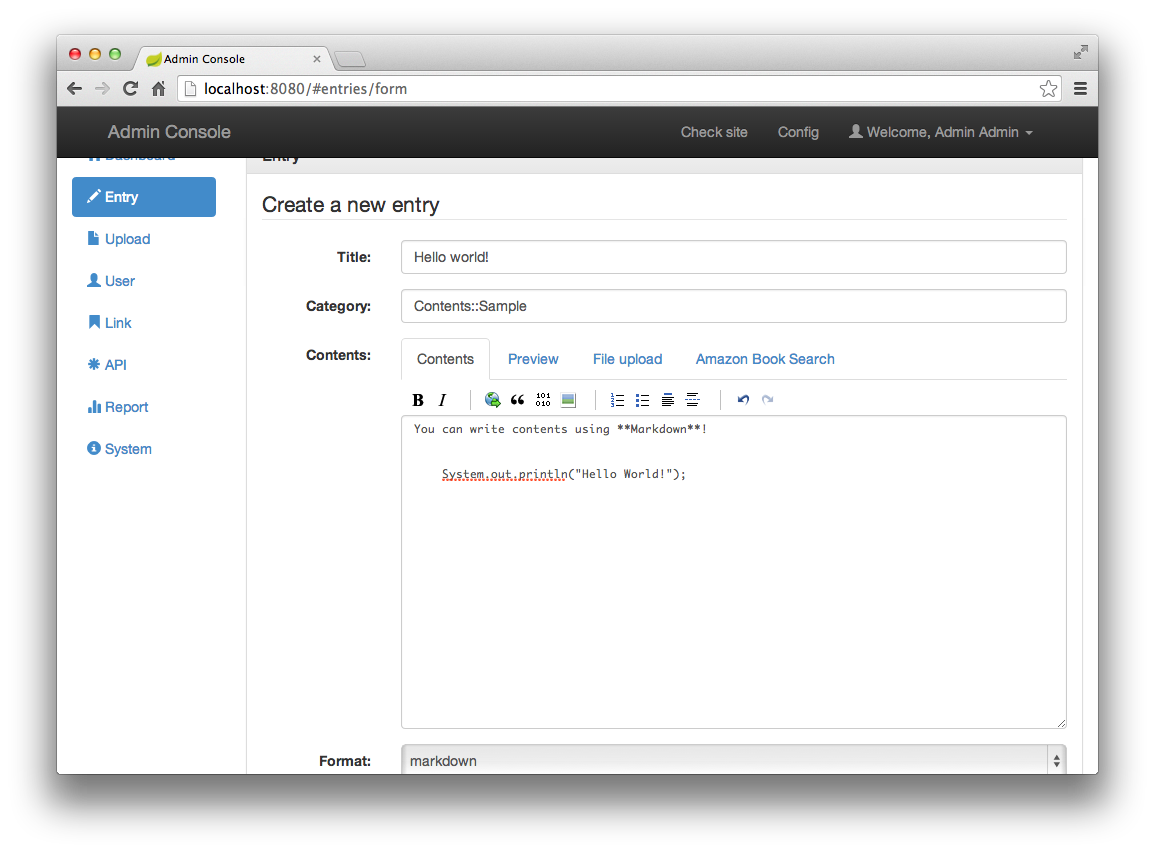

Entry form

You can write contents using Markdown or raw HTML.

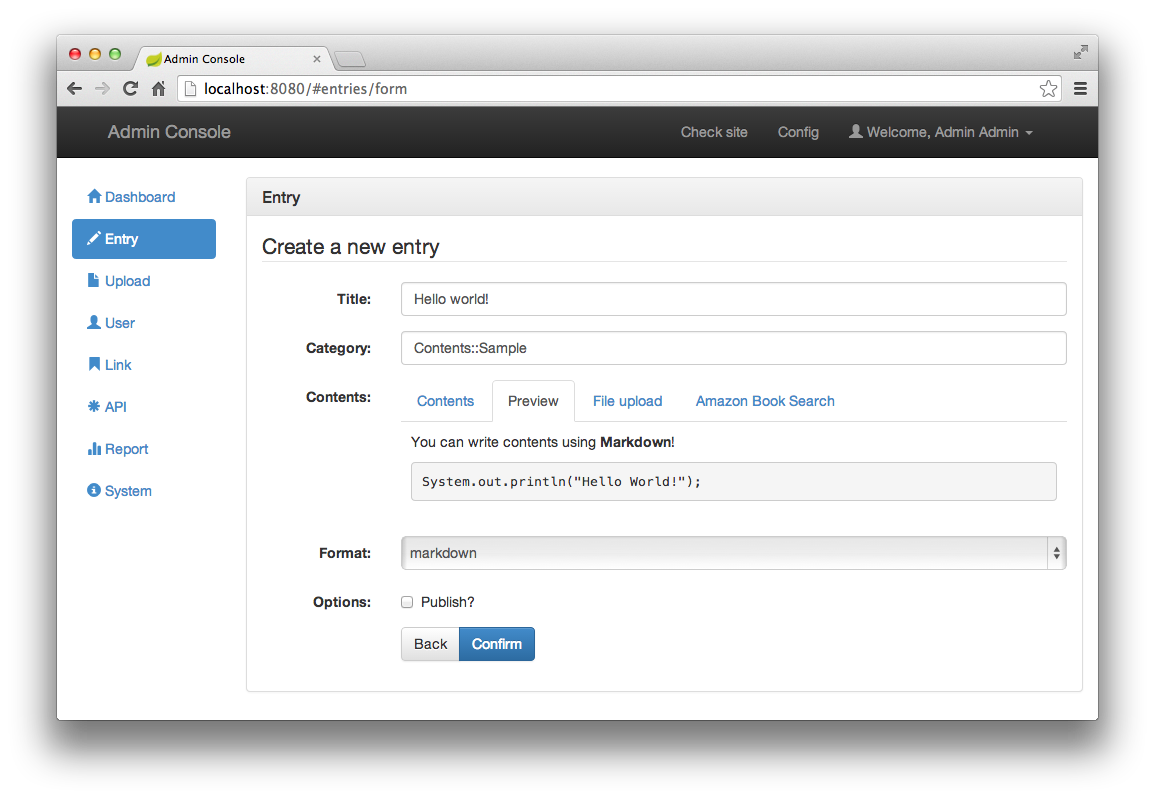

Entry preview

Live preview is available.

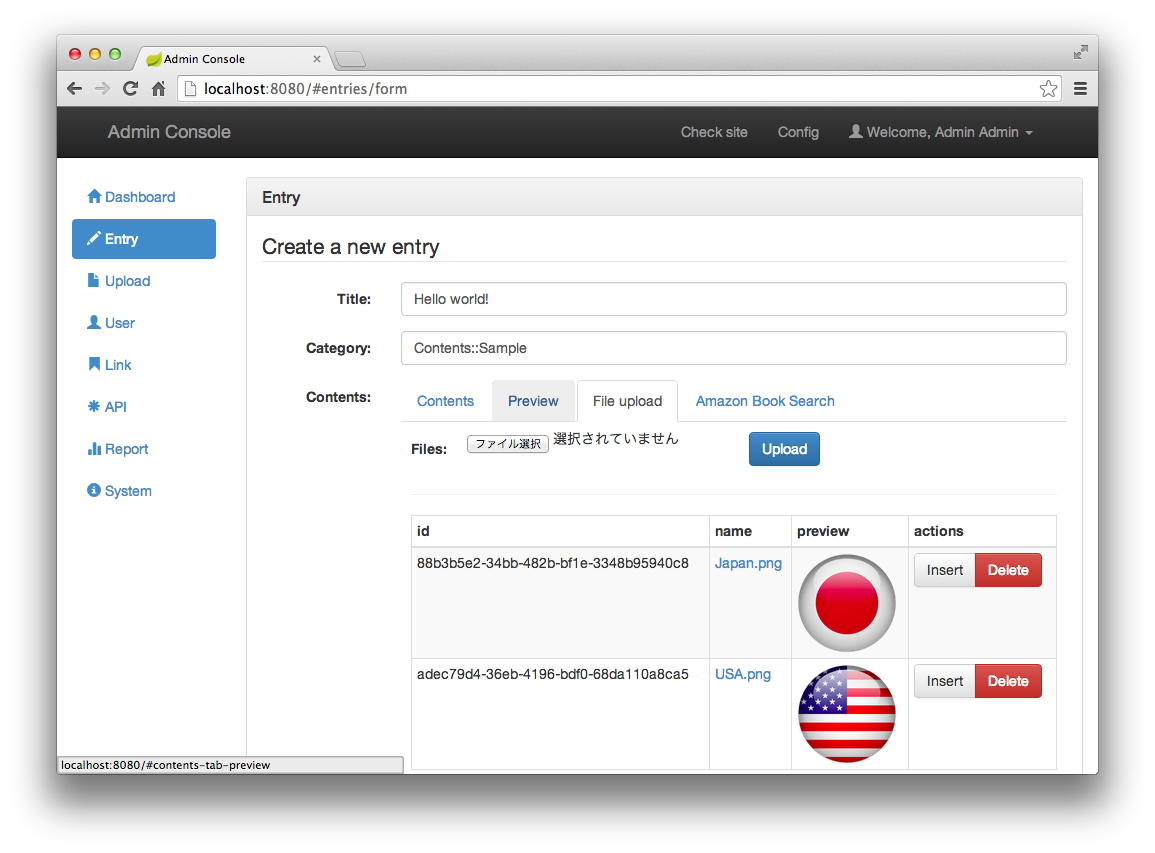

File upload

You can upload files to use the entry on the fly. HTML5 multiple attribute is supported.

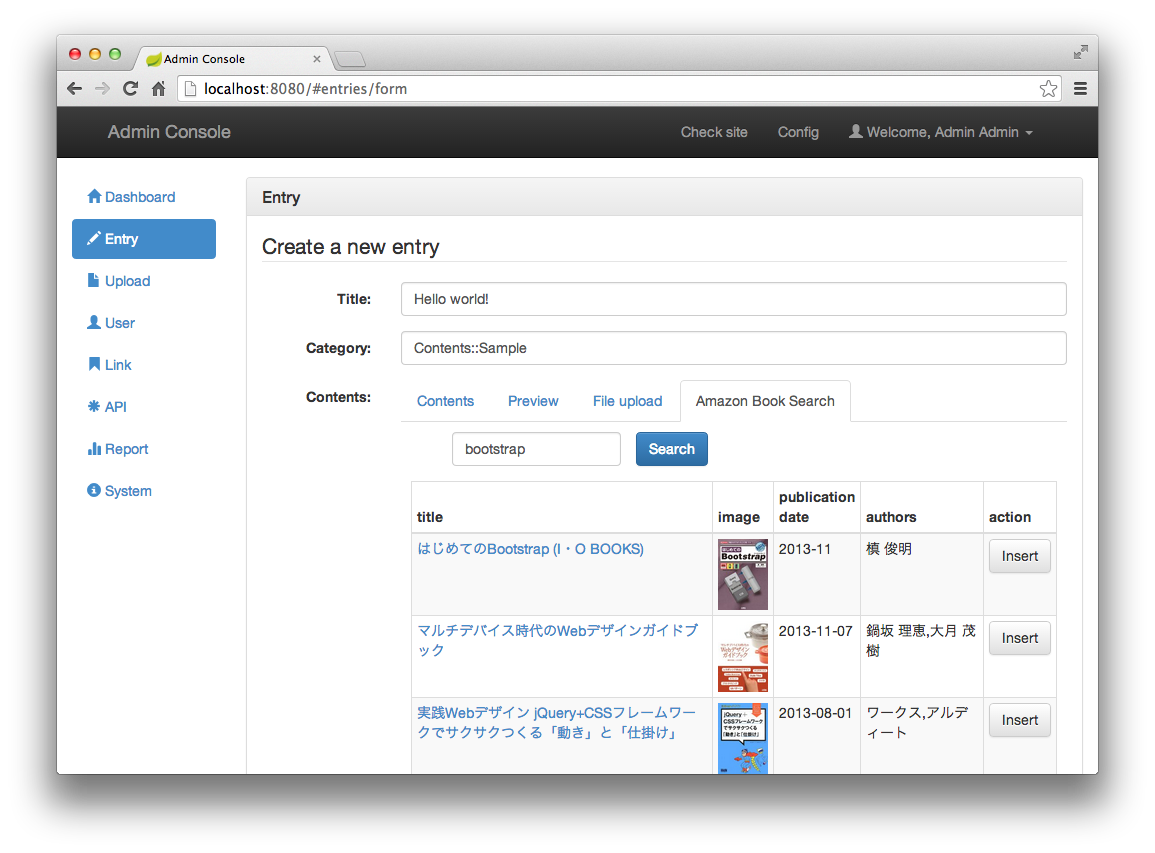

Amazon search

You can insert book link using Amazon Product API.

run with --aws.accesskey.id=<Your Accesskey ID for AWS> --aws.secret.accesskey=<Your Secret Accesskey for AWS> --aws.associate.tag=<Your Associate Tag>

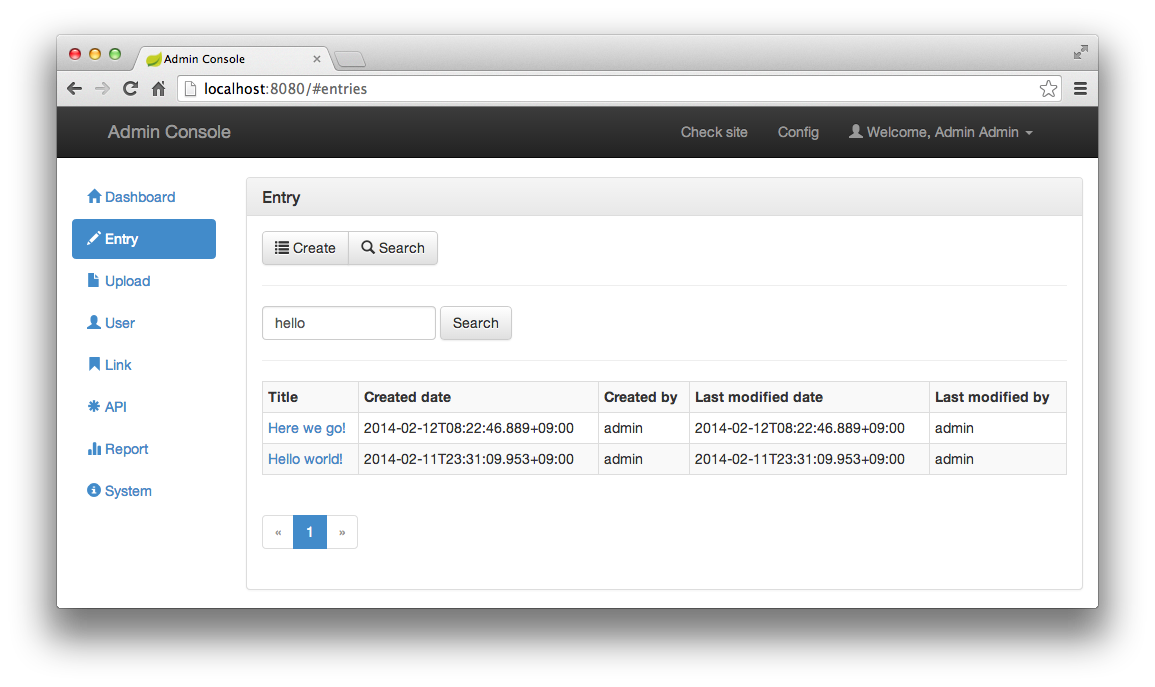

Entry search

Full text search is available.

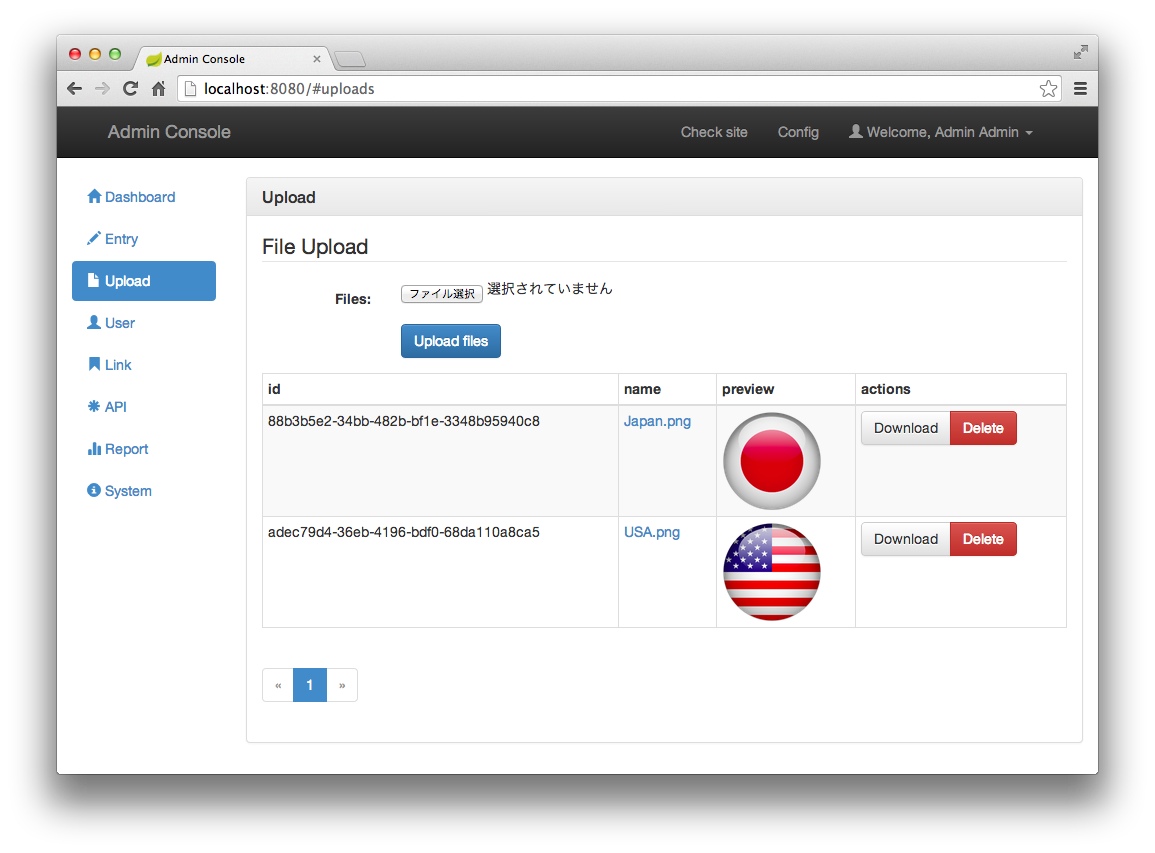

Manage uploaded files

Manage users

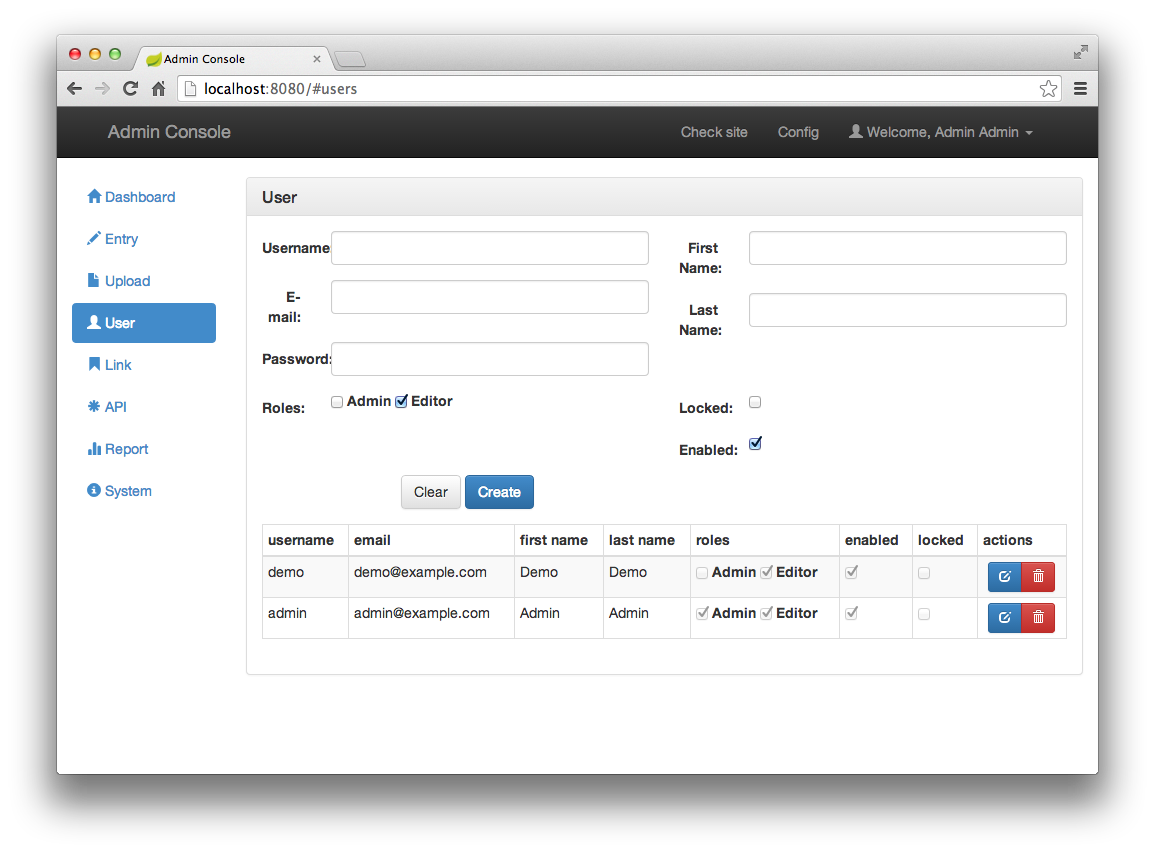

User list

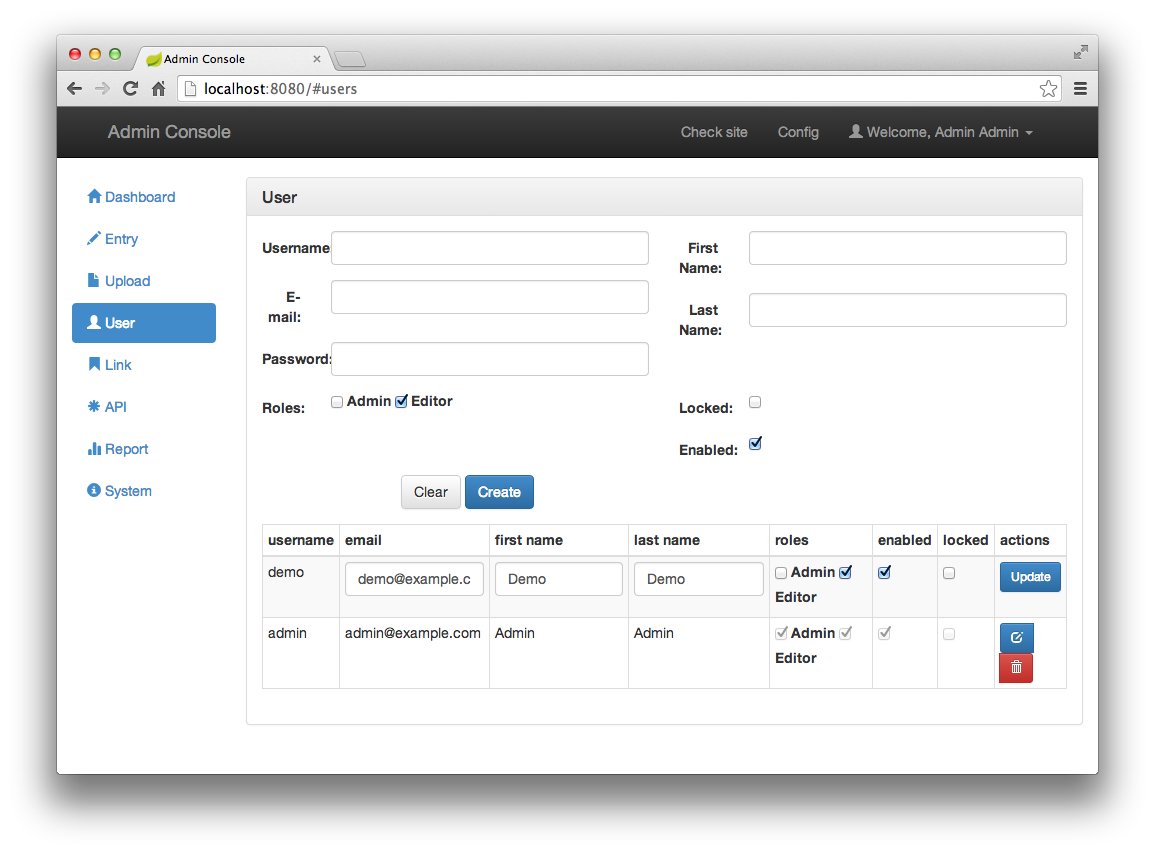

User edit

Inline edit is available.

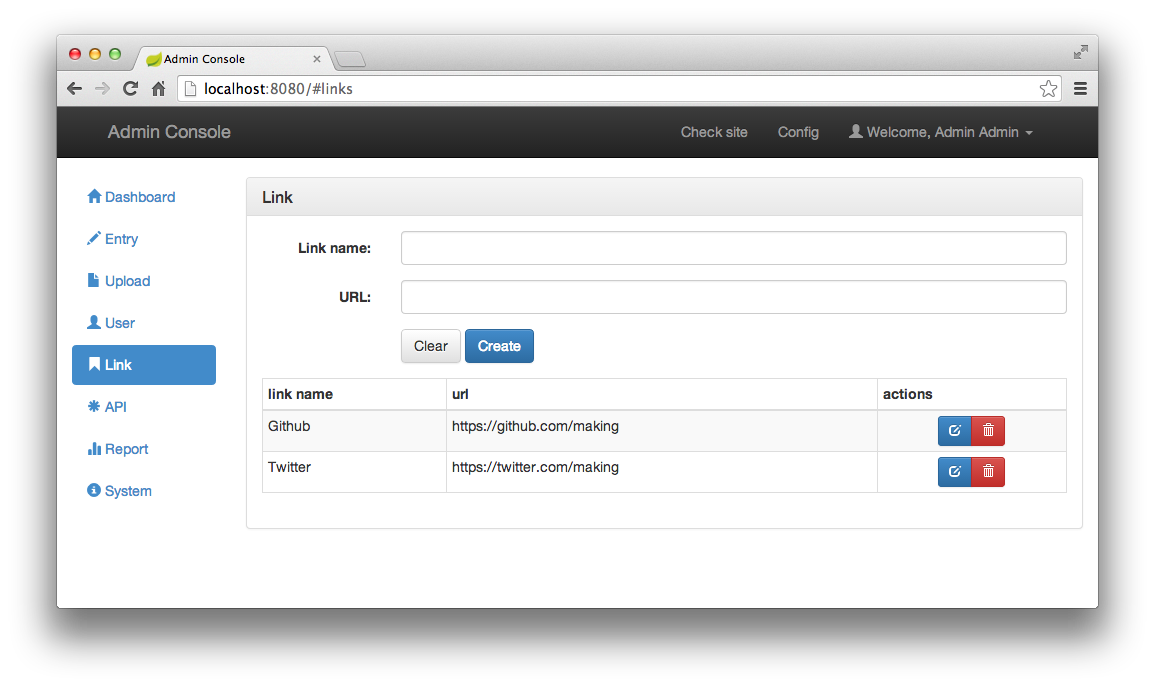

Manage links

Setup frontend

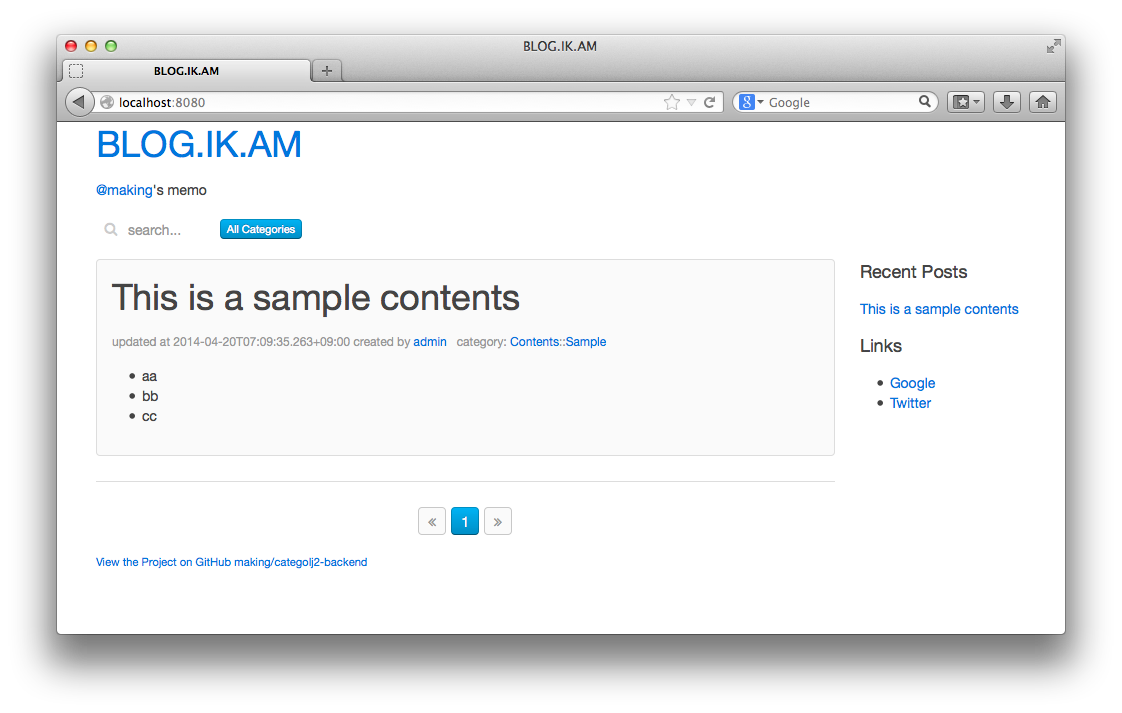

The following sample fronted is embedded by default:

You can use your own frontend.

Create static/index.html at the same directory with categol2-backend.jar like bellow:

$ find .
.
./categolj2-backend.jar
./static
./static/index.html

After run java -jar categolj2-backend.jar, you can find the following log which tells your own welcome page was picked.

2014-12-20 20:48:13.126  INFO                                    --- [           main] o.s.w.s.c.a.WebMvcConfigurerAdapter      : Adding welcome page: file:/xxx/yyy/zzz/static/index.html

You can reuse embedded frontend. Embedded html/css/javascript are zipped in categol2-backend.jar.

$ unzip -d foo categol2-backend.jar
$ unzip -d bar foo/lib/categolj2-frontend-ui*
$ cp -r bar/META-INF/resources static

Configurable properties

If you want suppress debug logs, run with like --log.verbose=warn --log.sql=warn.

See also Spring Boot's common application properties.

License

Licensed under the Apache License, Version 2.0.
