nanoVLM

[!TIP] We have written a tutorial on nanoVLM which will guide you through the repository and help you get started in no time.

[!NOTE] We have pushed some more breaking changes on September 9, 2025. These are all the updates to use image splitting and train on multiple nodes. This was used for the ablations of the FineVision release. Some things in the codebase regarding support scripts (eg. the notebook, or memory evals) are propably not working anymore. Similarly to the older trained versions of nanoVLM (similarly to Note below). If you find something that doesn't work anymore please let us know in the Issues or submit a PR!

[!NOTE] We have pushed some breaking changes to the repository on June 4, 2025. To enable us to do smarter packing, we refactored the way image and text embeddings are combined. To keep everything as smooth as possible, we have trained a new nanoVLM-450M with this new pipeline, while leaving the old nanoVLM-222M compatible with the old pipeline If you clone this repository now or pull the updated to your local machine, the default will be the new 450M Model. If you would like a simpler understanding and a simpler codebase, you can use the v0.1 release. This works out of the box with the old 222M model.

nanoVLM is the simplest repository for training/finetuning a small sized Vision-Language Model with a lightweight implementation in pure PyTorch. The code itself is very readable and approachable, the model consists of a Vision Backbone (models/vision_transformer.py ~150 lines), Language Decoder (models/language_model.py ~250 lines), Modality Projection (models/modality_projection.py ~50 lines) and the VLM itself (models/vision_language_model.py ~100 lines) and a simple training loop (train.py ~200 lines).

Similar to Andrej Karpathy's nanoGPT, we wanted to equip the community with a very simple implementation and training script for Vision Language Models. We do not claim this to be a new SOTA model, rather an educational effort that packs quite a bit of punch if you have the right hardware! You should be able to tweak and play around with the code in no time.

What can nanoVLM do?

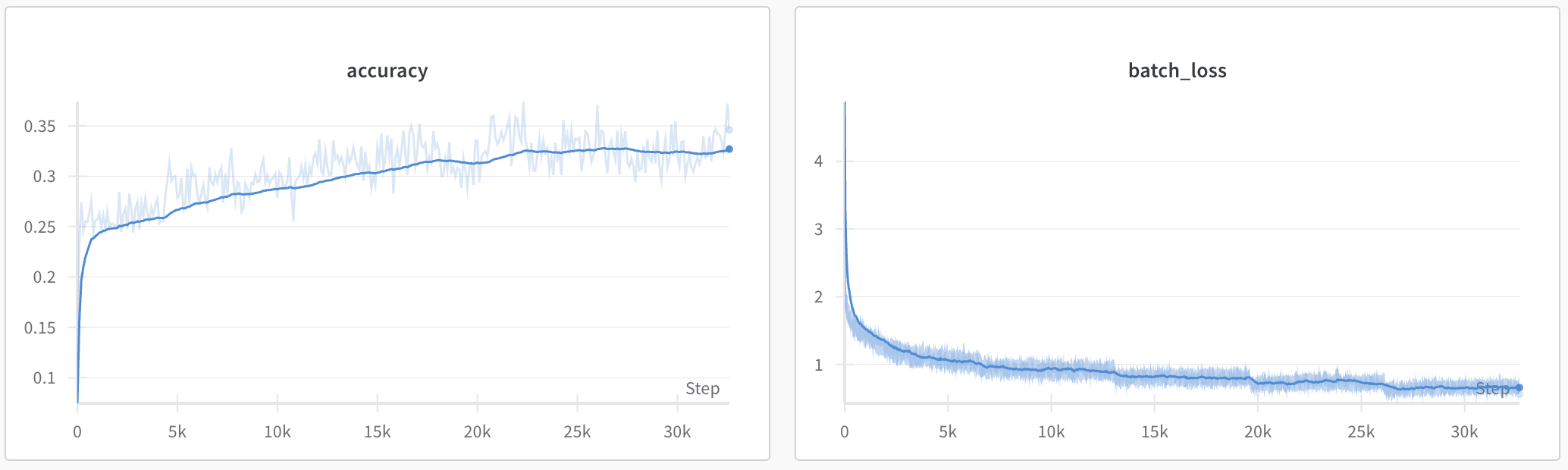

The model definition and training logic of this repository fits in ~750 lines, with some more boilerplate logging and parameter loading. Using the SigLIP-B/16-224-85M and HuggingFaceTB/SmolLM2-135M as backbones results in a 222M nanoVLM. Training this for ~6h on a single H100 GPU on ~1.7M samples of the cauldron results in an accuracy of 35.3% on MMStar.

It is therefore a simple yet powerful platform to get started with VLMs. Perfect to tinker around with different setups and settings, to explore the capabilities and efficiencies of small VLMs!

Quick Start

You can either clone the repository, setup an environment and start with the scripts, or directly open in Colab. You can also use the interactive notebook to get started!

Environment Setup

We really like uv and recommend using it as your package manager. But feel free to use whichever you prefer.

Let's first clone the repository:

git clone https://github.com/huggingface/nanoVLM.git
cd nanoVLM

If you want to use uv:

uv init --bare --python 3.12
uv sync --python 3.12
source .venv/bin/activate
uv add torch numpy torchvision pillow datasets huggingface-hub transformers wandb
# Optional: for lmms-eval integration you have to install it from source, see section 'Evaluation with lmms-eval'

If you prefer another environment manager, simply install these packages:

pip install torch numpy torchvision pillow datasets huggingface-hub transformers wandb
# Optional: for lmms-eval integration you have to install it from source, see section 'Evaluation with lmms-eval'

Dependencies:

• torch <3
• numpy <3
• torchvision for the image processors
• pillow for image loading
• datasets for the training datasets
• huggingface-hub & transformers to load the pretrained backbones
• wandb for logging

Training

To train nanoVLM, you can simply use the provided training script. After training, your model gets uploaded to the Hub!

wandb login --relogin
huggingface-cli login
python train.py

which will use the default models/config.py.

Generate

To try a trained model, you can simply use the provided generate script

python generate.py

or, to use your own trained model, you can simply run:

python generate.py --checkpoint /your/path/to/trained_models

If we feed the example image in assets/image.png with a question into the model, we get the following output. Even after only short training, the model can recognize the cat in the picture.

Input:
Image + 'What is this?'

Outputs:
Generation 1:  This is a cat sitting on the ground. I think this is a cat sitting on the ground.
Generation 2:  This picture is clicked outside. In the center there is a brown color cat seems to be sitting on
Generation 3:  This is a cat sitting on the ground, which is of white and brown in color. This cat
Generation 4:  This is a cat sitting on the ground. I think this is a cat sitting on the ground.
Generation 5:  This is a cat sitting on the ground, which is covered with a mat. I think this is

Evaluation with lmms-eval

nanoVLM now supports evaluation using the comprehensive lmms-eval toolkit:

# Install lmms-eval (has to be from source)
uv pip install git+https://github.com/EvolvingLMMs-Lab/lmms-eval.git

# Make sure you have your environment variables set correctly and you are logged in to HF
export HF_HOME="<Path to HF cache>"
huggingface-cli login

# Evaluate a trained model on multiple benchmarks
python evaluation.py --model lusxvr/nanoVLM-450M --tasks mmstar,mme

# If you want to use it during training, simply import the module and call it just as you would from the command line.
# You can pass all the arguments you can also pass in the command line.
# The evaluation during training works in the full DDP setup.
from evaluation import cli_evaluate
args = argparse.Namespace(
    model='lusxvr/nanoVLM-450M', # This can be either a checkpoint path or the model itself
    tasks='mmstar,mmmu,ocrbench',
    batch_size=128 # Adapt this to your GPU, needs to be passed to avoid an OOM Error
)
results = cli_evaluate(args)

Hub integration

nanoVLM comes with handy methods to load and save the model from the Hugging Face Hub.

Pretrained weights

Here is how to load from a repo on the Hugging Face Hub. This is the recommended way to start working with the pretrained weights.

# Load pretrained weights from Hub
from models.vision_language_model import VisionLanguageModel

model = VisionLanguageModel.from_pretrained("lusxvr/nanoVLM-450M")

Push to hub

Once you've trained a nanoVLM model, you might want to share it on the Hugging Face Hub. You can easily do that with:

... # Load and train your model

# Push it to `username/my-awesome-nanovlm-model` repo
model.push_to_hub("my-awesome-nanovlm-model")

The model will be saved on the Hub as a config file config.json and a weights file model.safetensors. A modelcard README.md will also be generated for you with some high-level information. Feel free to update it manually to explain your work.

If the repo does not exist, it will be created for you. By default the repo will be public. You can pass private=True if you don't want to share publicly.

Local save/load

If you don't want to host your model on the Hugging Face Hub, it is still possible to save it locally:

... # Load and train your model

# Save it to a local folder
model.save_pretrained("path/to/local/model")

You can then reload it from the local path:

# Load pretrained weights from local path
from models.vision_language_model import VisionLanguageModel

model = VisionLanguageModel.from_pretrained("path/to/local/model")

VRAM Usage

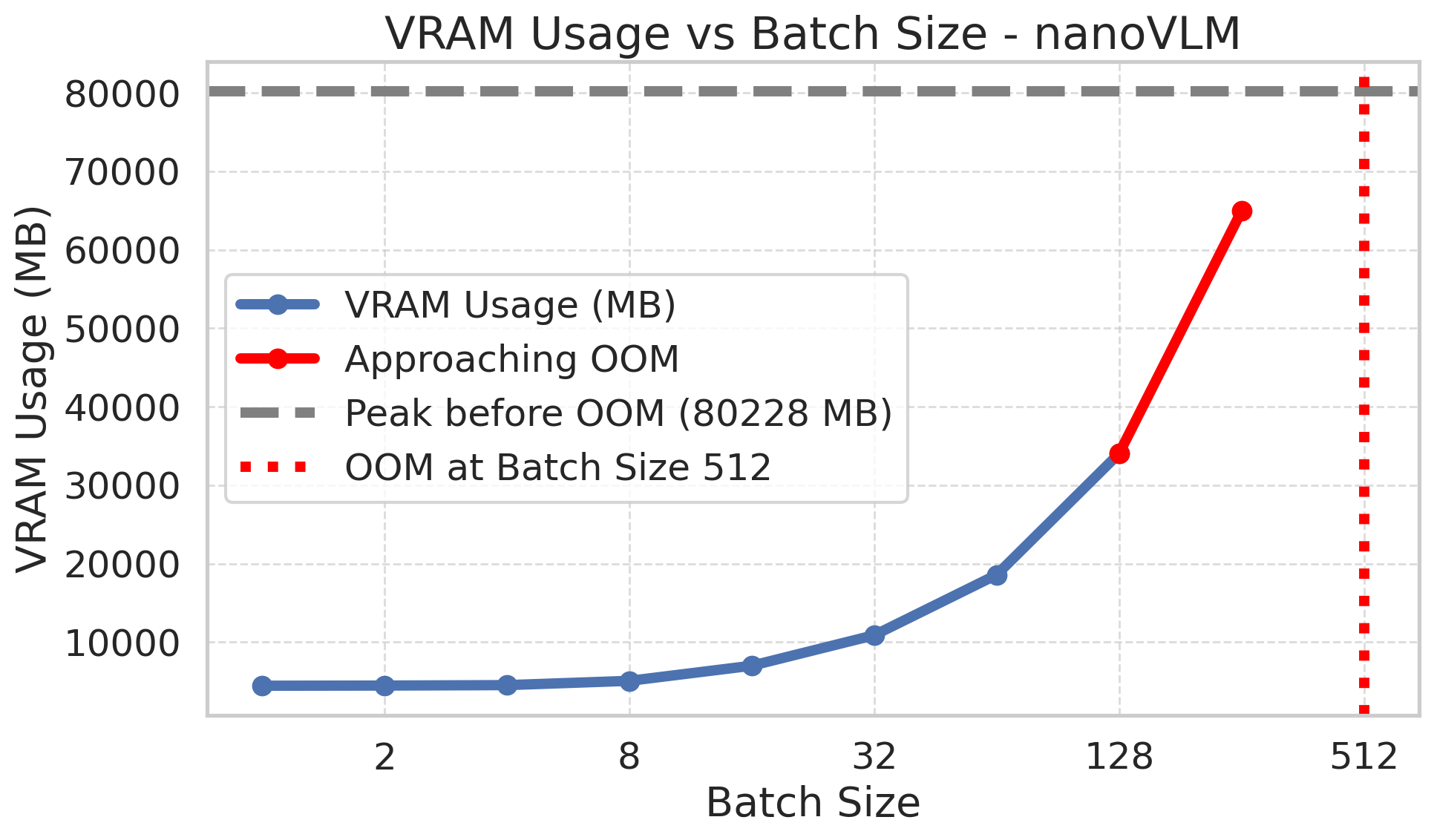

Understanding the VRAM requirements for training is crucial for selecting the right hardware and batch sizes. We've benchmarked the default nanoVLM model (222M parameters) on a single NVIDIA H100 GPU. Below is a summary of the peak VRAM usage observed for different batch sizes during training (including model, gradients, and optimizer states):

Here's a breakdown of the approximate peak VRAM usage:

VRAM allocated after loading model to device: 871.44 MB
--- Summary of VRAM Usage ---
Batch Size 1: 4448.58 MB
Batch Size 2: 4465.39 MB
Batch Size 4: 4532.29 MB
Batch Size 8: 5373.46 MB
Batch Size 16: 7604.36 MB
Batch Size 32: 12074.31 MB
Batch Size 64: 20995.06 MB
Batch Size 128: 38834.19 MB
Batch Size 256: 74561.08 MB
Batch Size 512: OOM (Peak before OOM: 80247.67 MB)

Note that the VRAM measurement was performed on a small setup using 'SmolLM2-135M' with a maximum input sequence length of 128 tokens. This may differ from the current default configuration in the project.

Key Takeaways:

• You'll need at least ~4.5 GB of VRAM to train the default model even with a batch size of 1.
• With approximately 8 GB of VRAM, you should be able to train with a batch size of up to 16.

Measure for Your Setup:

The values above are for the default model configuration. If you modify the model architecture (e.g., change backbones, hidden sizes) or use different sequence lengths, your VRAM requirements will change.

We provide a script measure_vram.py that allows you to test VRAM requirements on your specific machine and for your chosen model configuration and batch sizes.

To use it:

1. Ensure you have a CUDA-enabled GPU and PyTorch installed.
2. Run the script with your desired batch sizes. You can also specify a model checkpoint if you have one, or let it initialize a new model based on the default VLMConfig.

# Example: Test batch sizes 1, 2, 4, 8 with a new default model
python measure_vram.py --batch_sizes "1 2 4 8"

# Example: Test with a specific checkpoint and different batch sizes
python measure_vram.py --vlm_checkpoint_path path/to/your/model.pth --batch_sizes "16 32 64"

This script will output the peak VRAM allocated for each batch size tested, helping you determine feasible training configurations for your hardware.

Contributing

We welcome contributions to nanoVLM! However, to maintain the repository's focus on simplicity and pure PyTorch, we have a few guidelines:

• Pure PyTorch: We aim to keep nanoVLM as a lightweight implementation in pure PyTorch. Contributions that introduce dependencies like transformers.Trainer, accelerate, or deepspeed will not be accepted.
• New Features: If you have an idea for a new feature, please open an issue first to discuss the scope and implementation details. This helps ensure that your contribution aligns with the project's goals.
• Bug Fixes: Feel free to submit pull requests for bug fixes.

Roadmap

Here are some areas we're looking to work on in the near future. Contributions in these areas are particularly welcome:

• Evaluations: Implementing more evaluations or improving our MMStar implementation (highly valued)
• Data Packing: Implementing a way to create packs of a given size from the input data to optimize training.
• Multi-gpu training: Training on several GPUs
• Multi-image support: Training with several images
• Image-splitting: Enabling higher resolutions through image-splitting as done in SmolVLM.
• VLMEvalKit: Integration into VLMEvalKit to enable further benchmarks

Citation

If you like the project and want to use it somewhere, please use this citation:

@misc{wiedmann2025nanovlm,
  author = {Luis Wiedmann and Aritra Roy Gosthipaty and Andrés Marafioti},
  title = {nanoVLM},
  year = {2025},
  publisher = {GitHub},
  journal = {GitHub repository},
  howpublished = {\url{https://github.com/huggingface/nanoVLM}}
}
