knownsec/Kunyu

Kunyu(坤舆) - More efficient corporate asset collection

English | 中文文档

0x00 Introduce

Tool introduction

Kunyu (kunyu), whose name is taken from , is actually a professional subject related to geographic information, which counts the geographic information of the sea, land, and sky. The same applies to cyberspace. The same is true for discovering unknown and fragile assets. It is more like a cyberspace map, which is used to comprehensively describe and display cyberspace assets, various elements of cyberspace and the relationship between elements, as well as cyberspace and real space. The mapping relationship. So I think "Kun Yu" still fits this concept.

Kunyu aims to make corporate asset collection more efficient and enable more security-related practitioners to understand and use cyberspace surveying and mapping technology.

Application scenario

For the use of kunyu, there can be many application scenarios, such as:

• Forgotten and isolated assets in the enterprise are identified and added to security management.
• Perform quick investigation and statistics on externally exposed assets of the enterprise.
• Red and blue are used against related requirements, and batch inspections of captured IPs are performed.
• Collect vulnerable assets in batches (0day/1day) for equipment and terminals within the impact.
• Information on sites involved in new-type cybercrime cases is quickly collected and merged for more efficient research, judgment, and analysis.
• Statistic and reproduce the fragile assets on the Internet that are affected by related vulnerabilities.
• .......

0x01 Install

Need Python3 or higher support

git clone https://github.com/knownsec/Kunyu.git
cd Kunyu
pip3 install -r requirements.txt

Linux:
	python3 setup.py install
	kunyu console

Windows:
	cd kunyu
	python3 console.py

PYPI:
	pip3 install kunyu

P.S. Windows also supports python3 setup.py install.

0x02 Configuration instructions

When you run the program for the first time, enter the following command to initialize the operation. Other login methods are provided, and the API method is recommended (username/password login is deprecated).

kunyu init --apikey <your zoomeye key> --seebug <your seebug key>

The first time you use it, you need to use ZoomEye login credentials to use the tool to collect information. Currently, ZoomEye API requires payment.

ZoomEye access address: https://www.zoomeye.org/

Seebug access address: https://www.seebug.org/

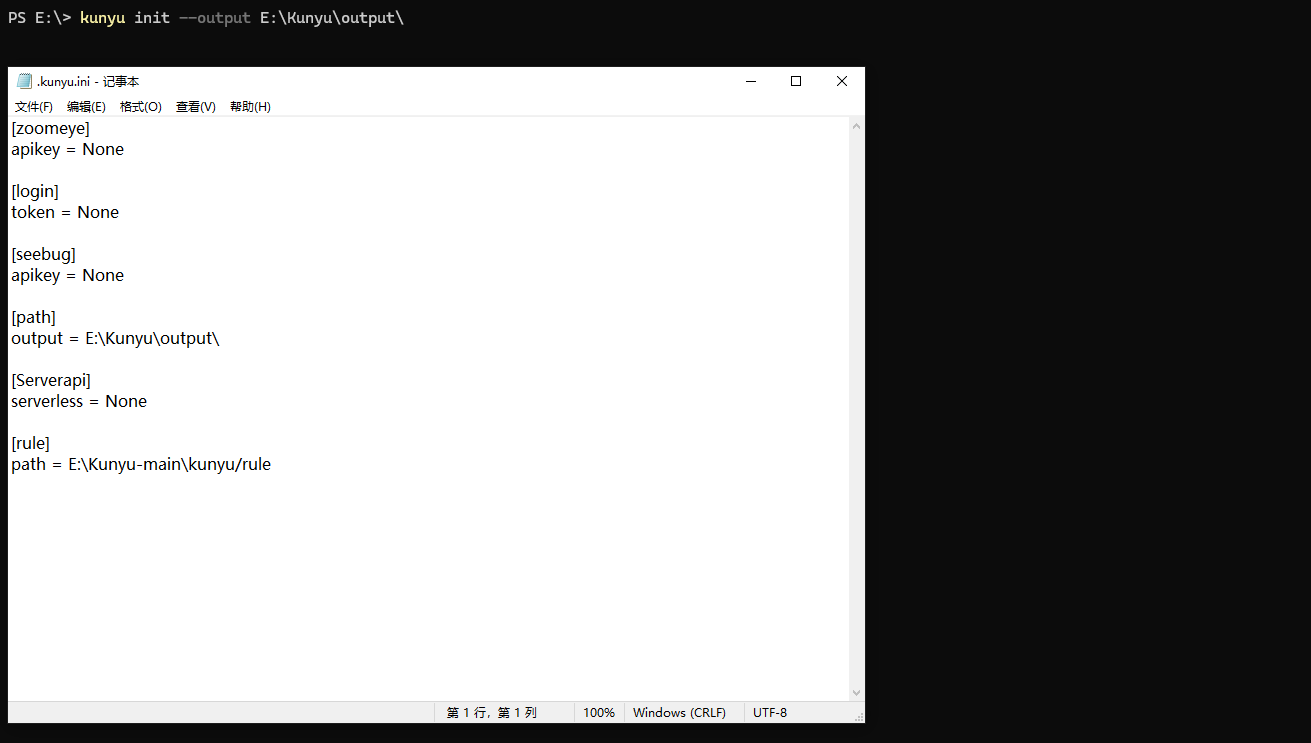

The output file path can be customized by the following command,The default output path is: C:/Users/active user/kunyu/output/ or /active user/kunyu/output

kunyu init --output C:\Users\风起\kunyu\output

0x03 Tool instructions

Detailed command

kunyu console

ZoomEye

Global commands:
        info                                      Print User Info
        Search <Query>                            Comprehensive Information Search
        SearchIcon <File>/<URL>                   Query Based On Icon Image
        SearchBatch <File>                        Batch Query Assets In Files
        SearchCert <Domain>                       SSL Certificate Search
        SearchDomain <Domain>                     Domain Name Associated/Subdomain Search
        EncodeHash <Encryption> <Query>           Encryption Method Interface (Base64/HEX/MD5/mmh3)
        HostCrash <IP> <Domain>                   Host Header Scan Hidden Assets
        show <config>/<rule>                      Show Can Set Options Or Kunyu Config
        Seebug <Query>                            Search Seebug Vulnerability Information
        set <Option>                              Set Global Arguments Values
        view/views <ID>                           Look Over Banner Row Data Information
        Cscan <IP>/<Port>                         Scans Port Information About CobaltStrike
        PupilSearch <URL>/<ID>                    Example Query Sensitive Interfaces And Information
        CDNAnalysis <Domain>                      Identify Whether The Domain Name Is a CDN Asset
        Pocsuite3                                 Invoke The Pocsuite Component
        ExportPath                                Returns The Path Of The Output File
        CreateMap                                 Generate An IP Distribution Heat Map
        AliveScan                                 The Viability Of The Last Retrieval
        clear                                     Clear The Console Screen
        help                                      Print Help Info
        exit                                      Exit KunYu &

OPTIONS

ZoomEye:
        page <Number>       		The number of pages returned by the query (default:1)
        size <Number>      		Set the number of searches per page (default:10)
        fields <fields>     		Set the response field information
        dtype <0/1>         		Query associated domain name/subdomain name
        stype <v4/v6>       		stype <v4/v6> Set to get data type IPV4 or IPV6
        btype <host/web>    		Set the API interface for batch query
        timeout <num>       		Set the timeout period of Kunyu HTTP request
        thread              		Set PupilSearch Thread Number(default is 10)
        deep                		Set PupilSearch Search Deep(default is 2)
        all                 		PupilSearch Add All Url To Check List
        fuzz                		PupilSearch Add Api To Check List
        proxy               		PupilSearch HTTP Proxy


Use case introduction

*Kunyu usage tutorial is as follows *

User information query

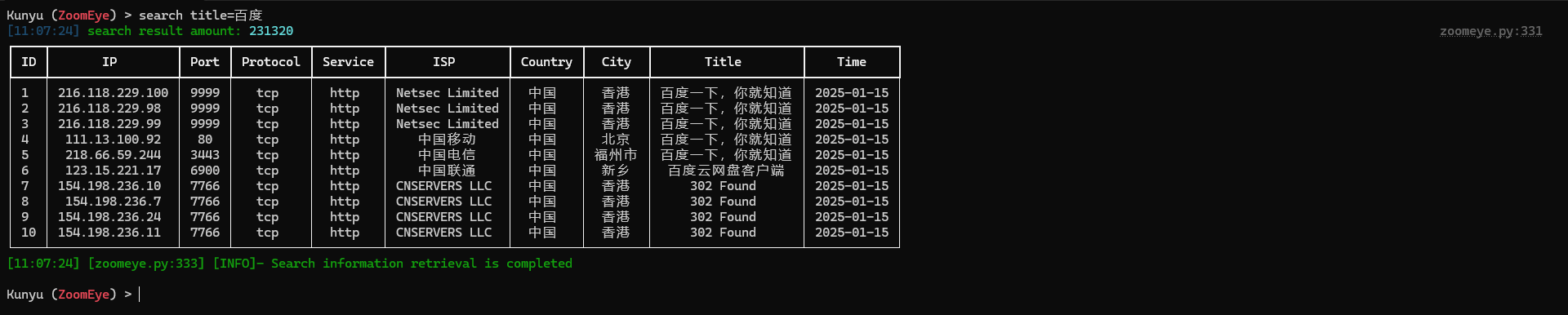

Comprehensive search（NEW）

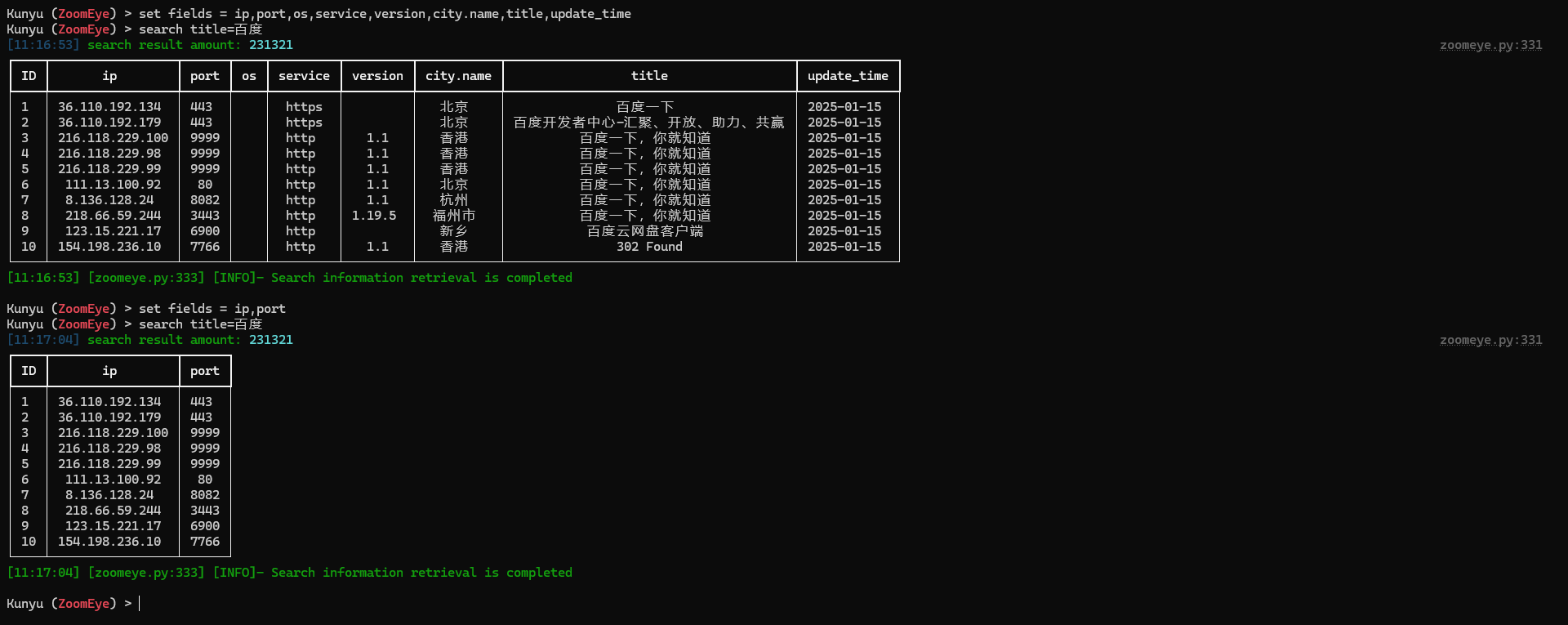

Custom output fields（NEW）

For specific supported output custom fields, please refer to the following:

Settings to change default output fields

Set fields = ip,port

Batch IP search

Icon Search

When collecting corporate assets, we can use this method to retrieve the same ico icon assets, which usually has a good effect when associating related corporate assets. But it should be noted that if some sites also use this ico icon, irrelevant assets may be associated (but people who are bored with other people's ico icons are always in the minority). Support url or local file search.

Command format:

SearchIocn https://www.baidu.com/favicon.ico
SearchIcon /root/favicon.ico

SSL certificate search

Query through the serial number of the SSL certificate, so that the associated assets are more accurate, and services that use the same certificate can be searched. When you encounter an https site, you can use this method.

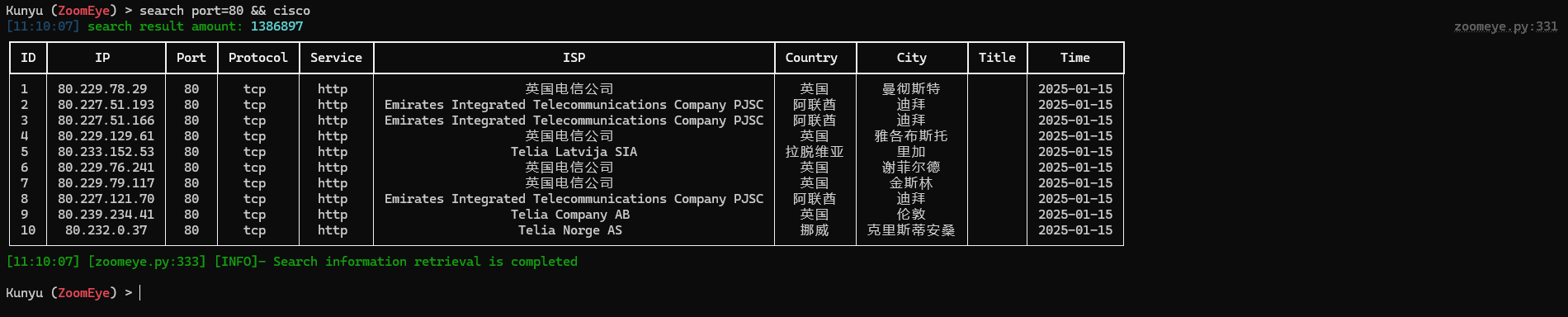

Multi-factor query

Similarly, Kunyu also supports multi-factor conditional query related assets, which can be realized through ZoomEye logic operation syntax.

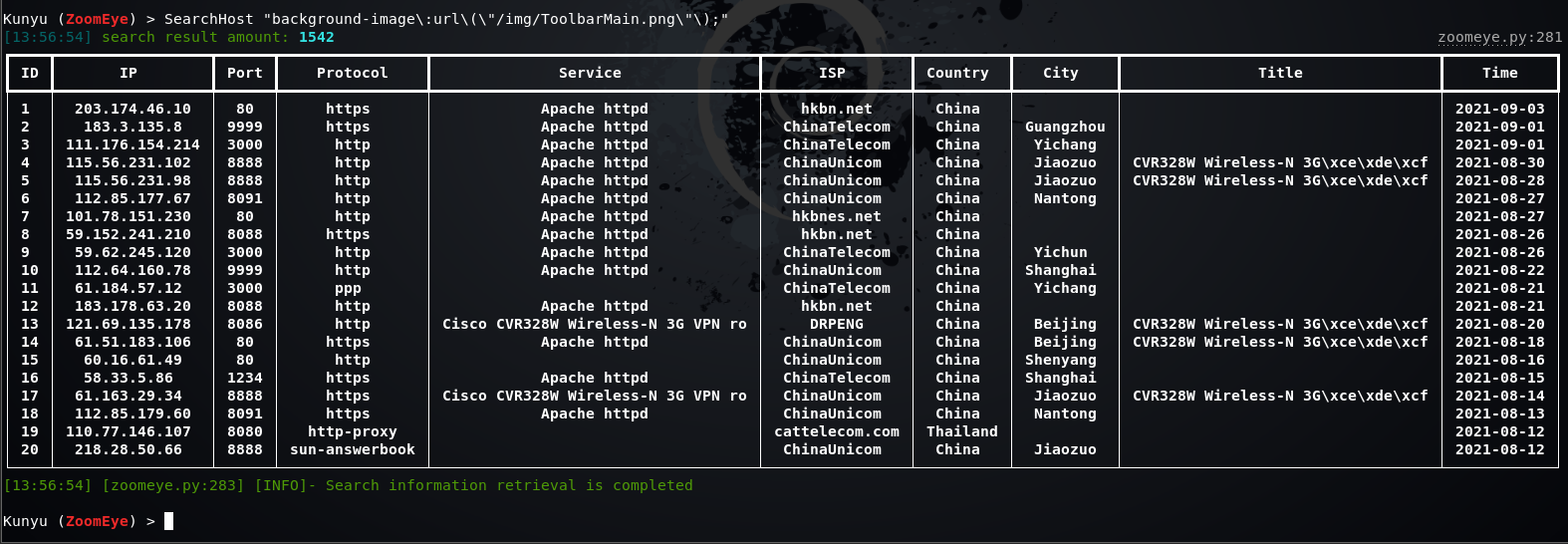

Feature Search

Through HTTP request packet features or website-related features, the same framework assets can be concatenated more accurately

Associated Domain/Subdomain Search

Search for associated domain names and subdomains, and query associated domain names by default. You can set associated domain name/subdomain name two modes by setting the dtype parameter.

Command format: SearchDomain Domain

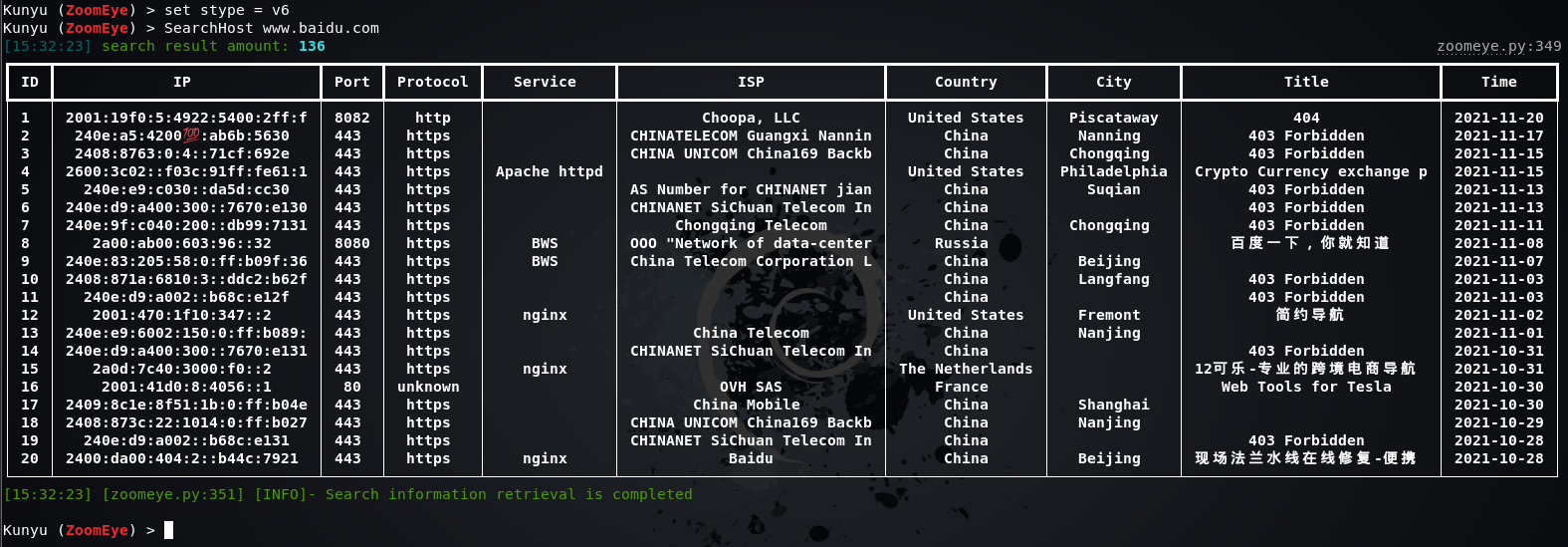

Set the type of data to be obtained

After the V1.6.1 version, the user can set the data type obtained through the stype parameter to IPV4 or IPV6 to realize the application scenario, and the default parameter is v4.

Command format: set stype = v6

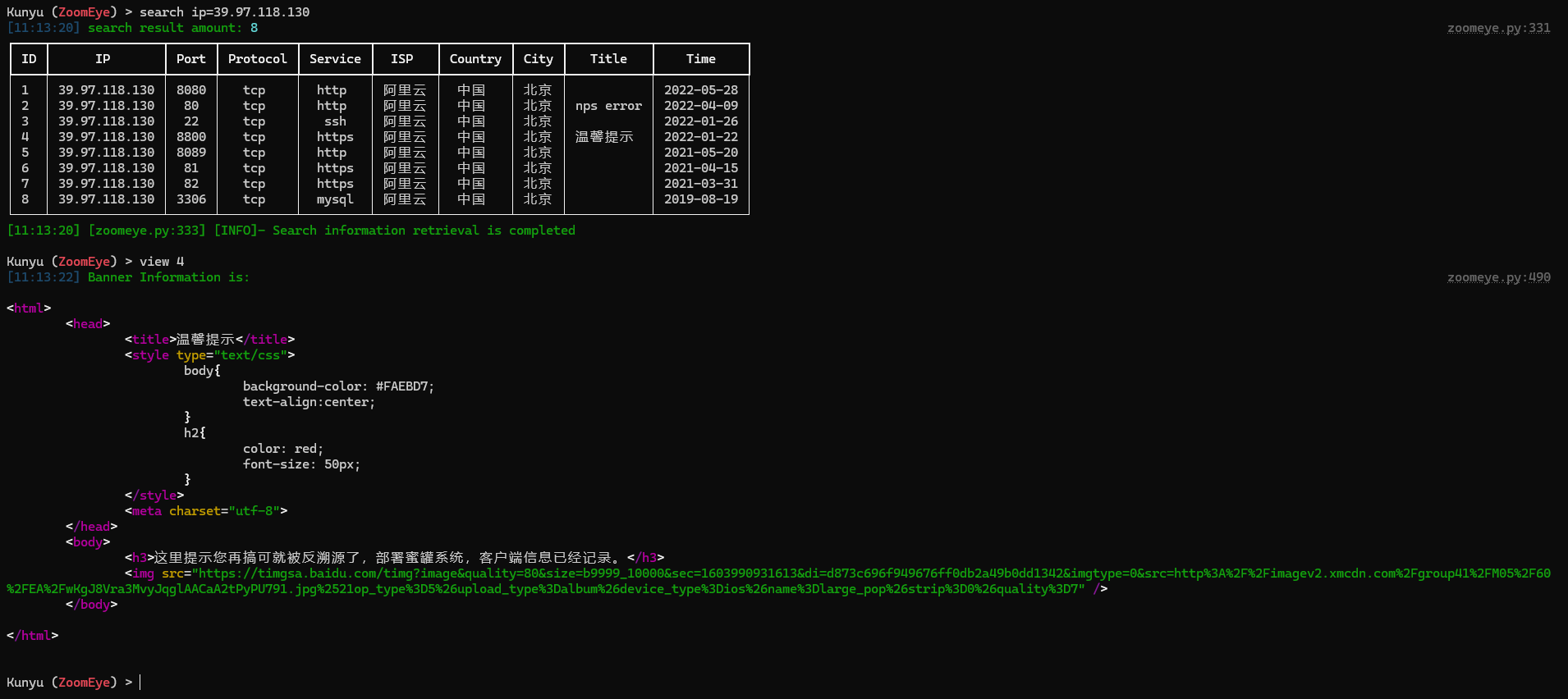

View Banner Information

The user can view the banner corresponding to the specified serial number through the view command, so as to further analyze the front-end code and Header header, and the user can intercept the banner information for further association matching.

Command format: view ID

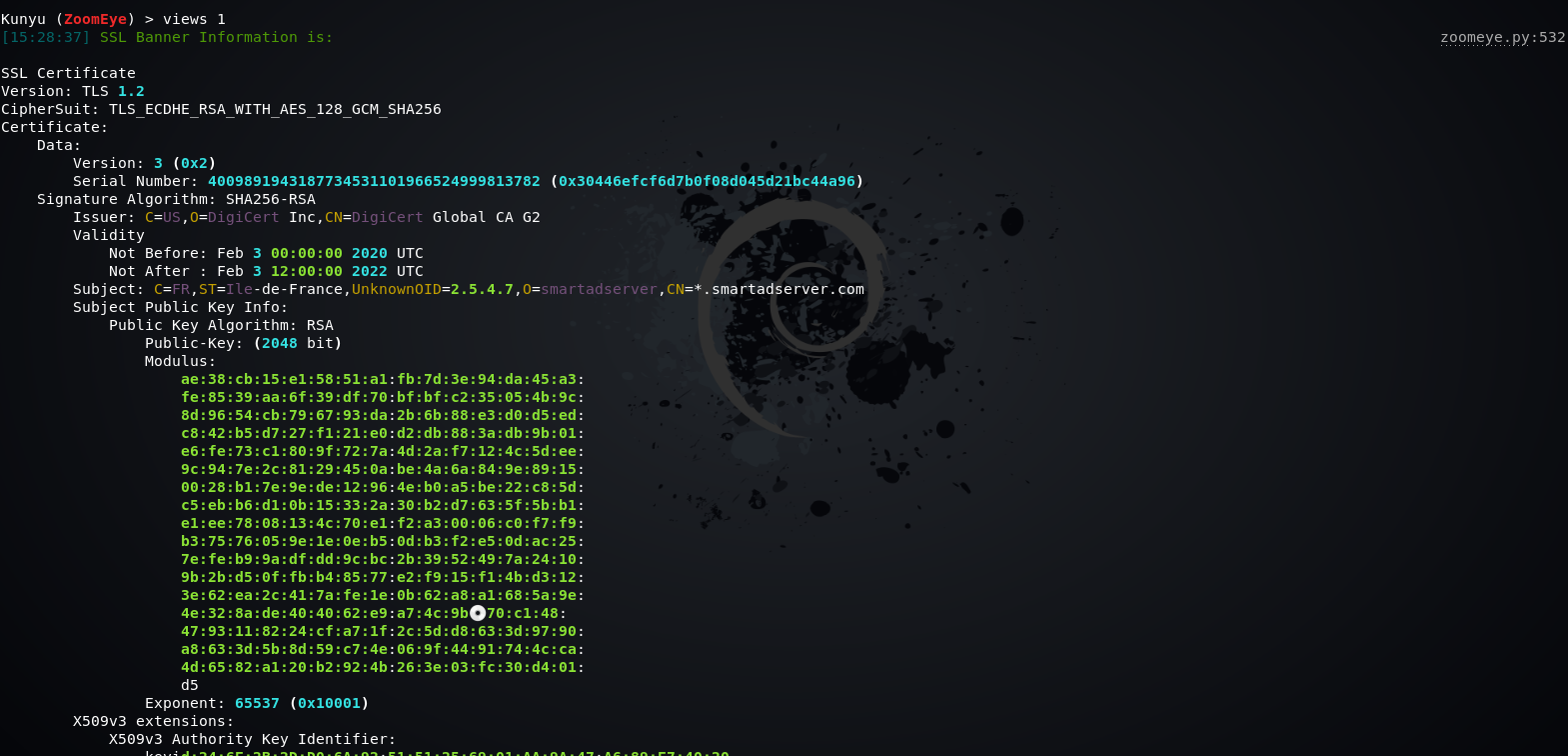

The user can also view the SSL certificate information of the specified serial number through the views command, and further associate it by extracting the sensitive information in the SLL certificate information.

Command format: views ID

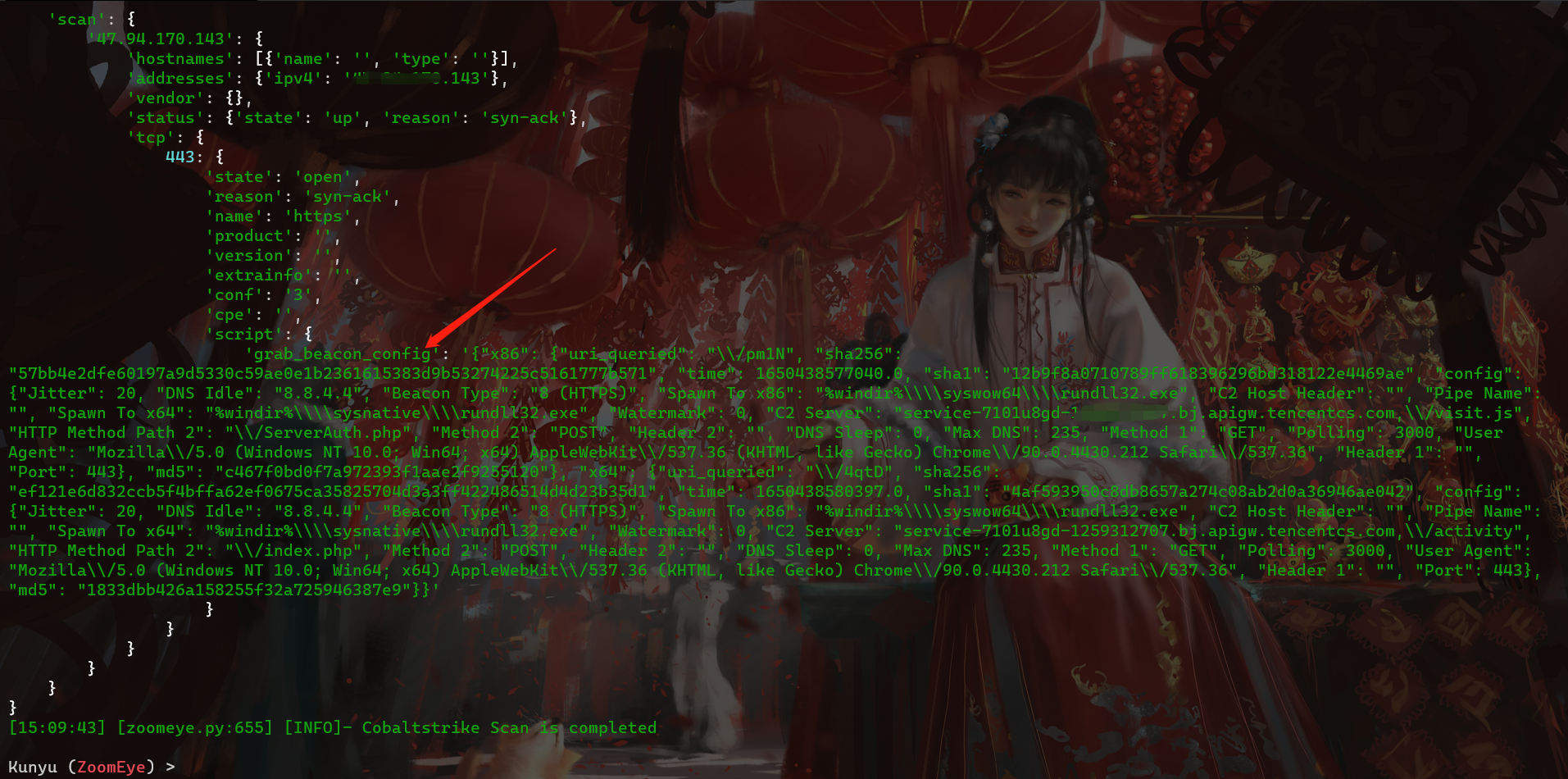

Cscan Scans port information about cobaltStrike

Cscan, a new feature in Kunyu version 1.7.2, allows you to use this command to identify whether a network asset is cobaltStrike and to enumerate configuration file details.

Command format:

Cscan 1.1.1.1 443
Cscan 1.1.1.1 443,80

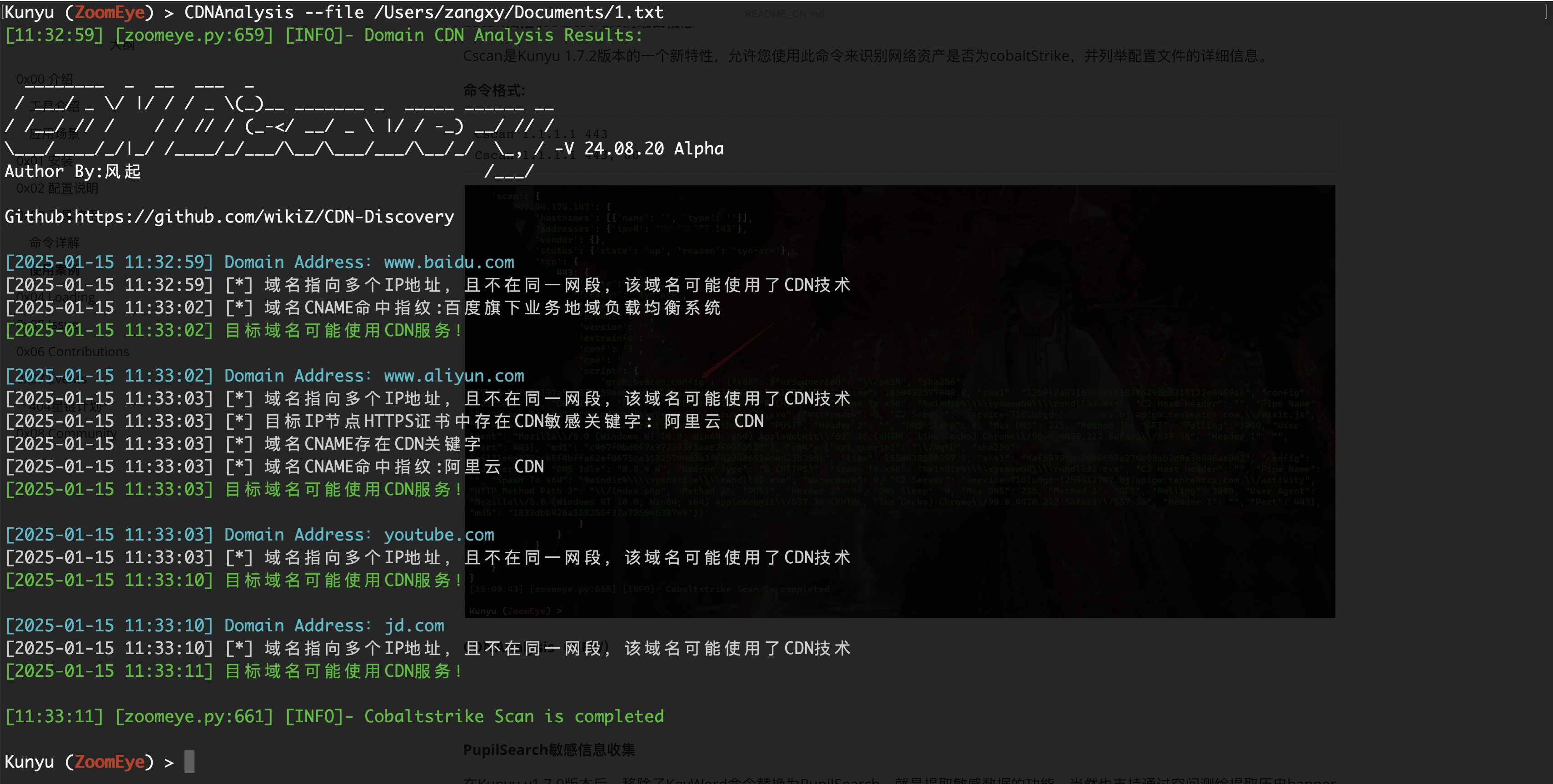

CDNAnalysis（NEW）

Note that when using Kunyu through code compilation, this function module is not provided by default. If you need to add this function, you need to compile it yourself and add it to the /lib/cdn/ path under the kunyu running path. Name it linux, darwin**, and windows.exe** according to the operating system used.

https://github.com/wikiZ/CDN-Discovery

Command format:

CDNAnalysis --file ip.txt
CDNAnalysis --domain www.baidu.com

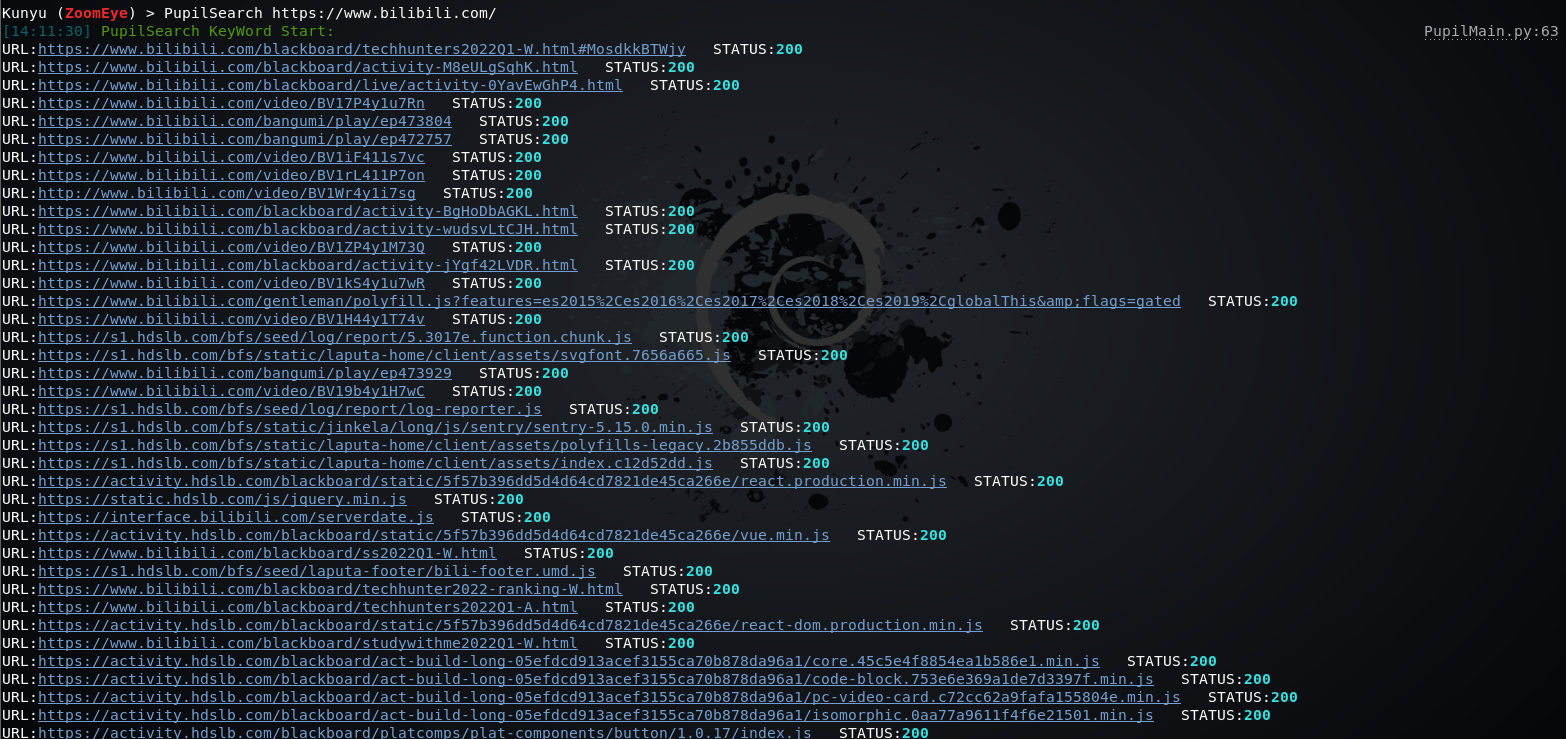

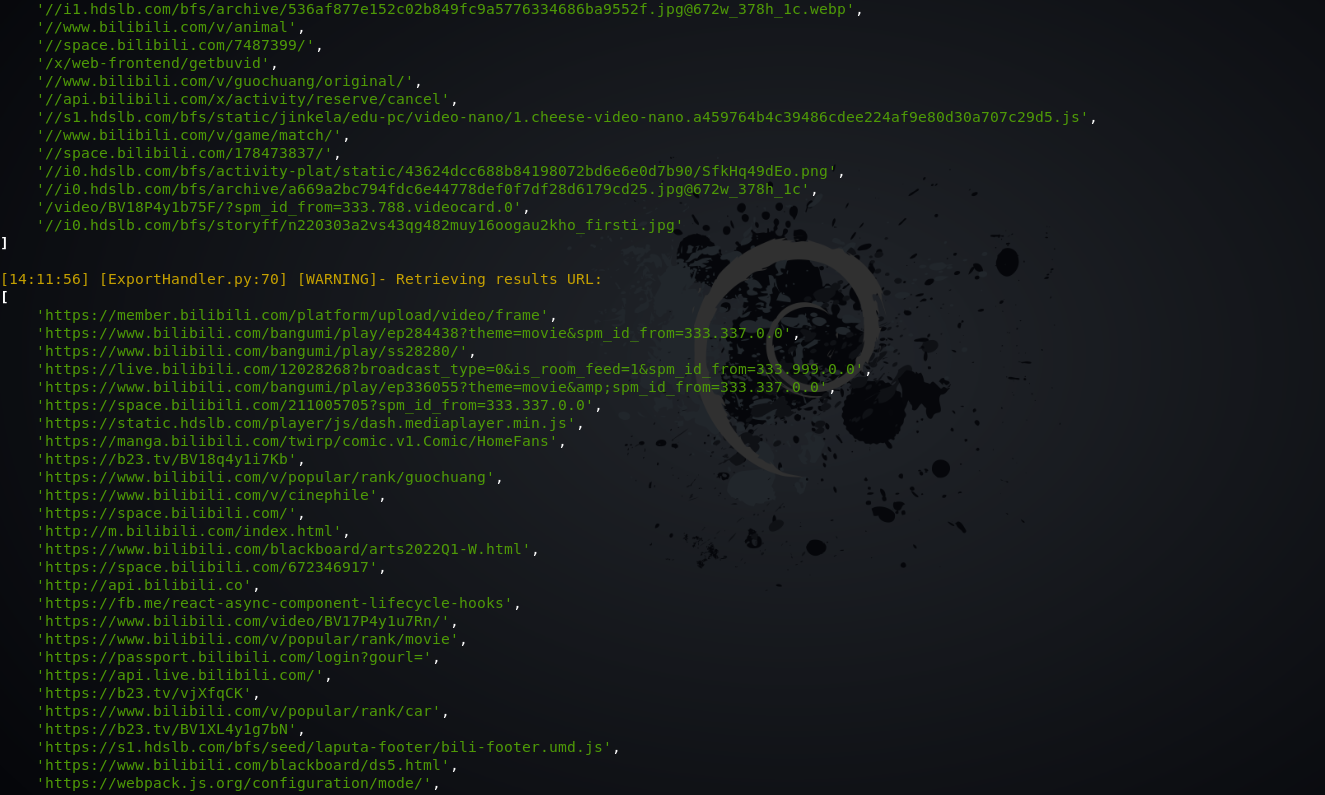

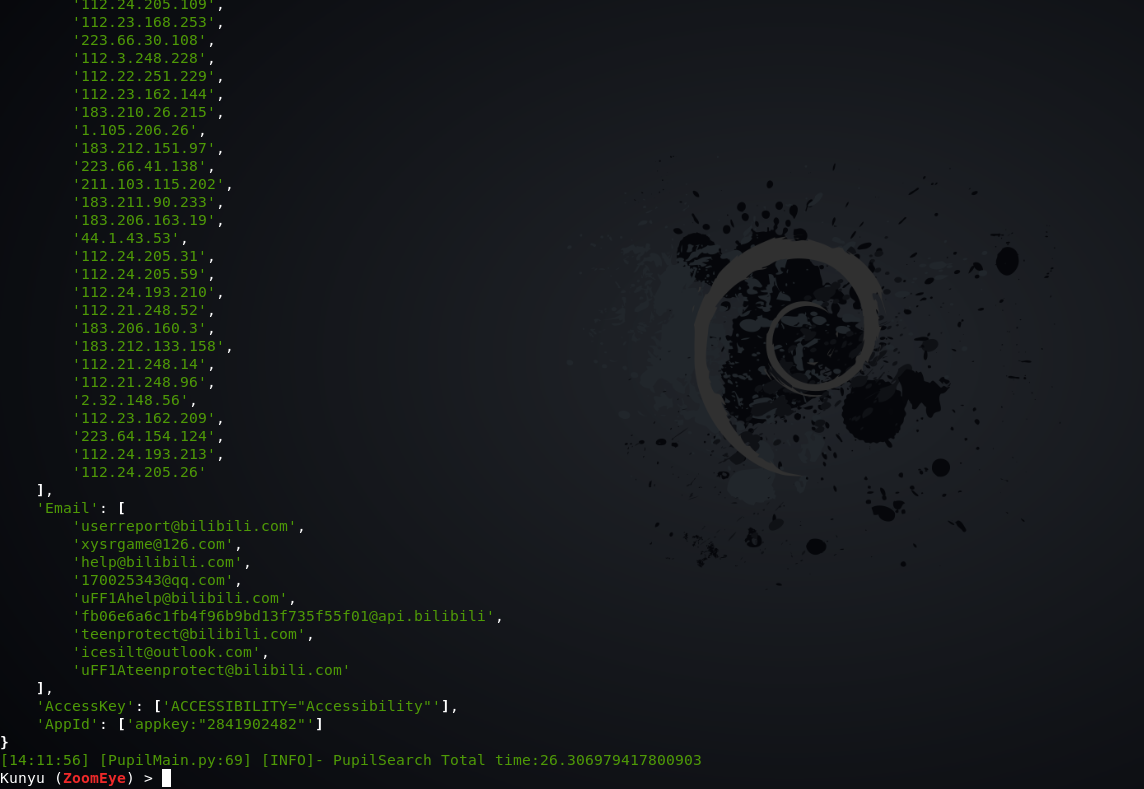

PupilSearch Sensitive Information Collection

After Kunyu v1.7.0, the KeyWord command was removed and replaced with PupilSearch, which is the function of extracting sensitive data. Of course, it also supports the extraction of historical banner information through spatial mapping. For example, such as accesskey, the banner in historical data leaks sensitive data. Information, even if the service is changed now, but the AK/SK has not expired, it can still be used directly, understand everything, and support the extraction of sensitive information (ID number, IP, JWT, API interface, appid, appkey, GithubAccessKey, default username \password, email, etc.).

Command format:

PupilSearch https://www.domain.com/

PupilSearch ID (extract sensitive information from the banner returned by spatial mapping)

System command execution

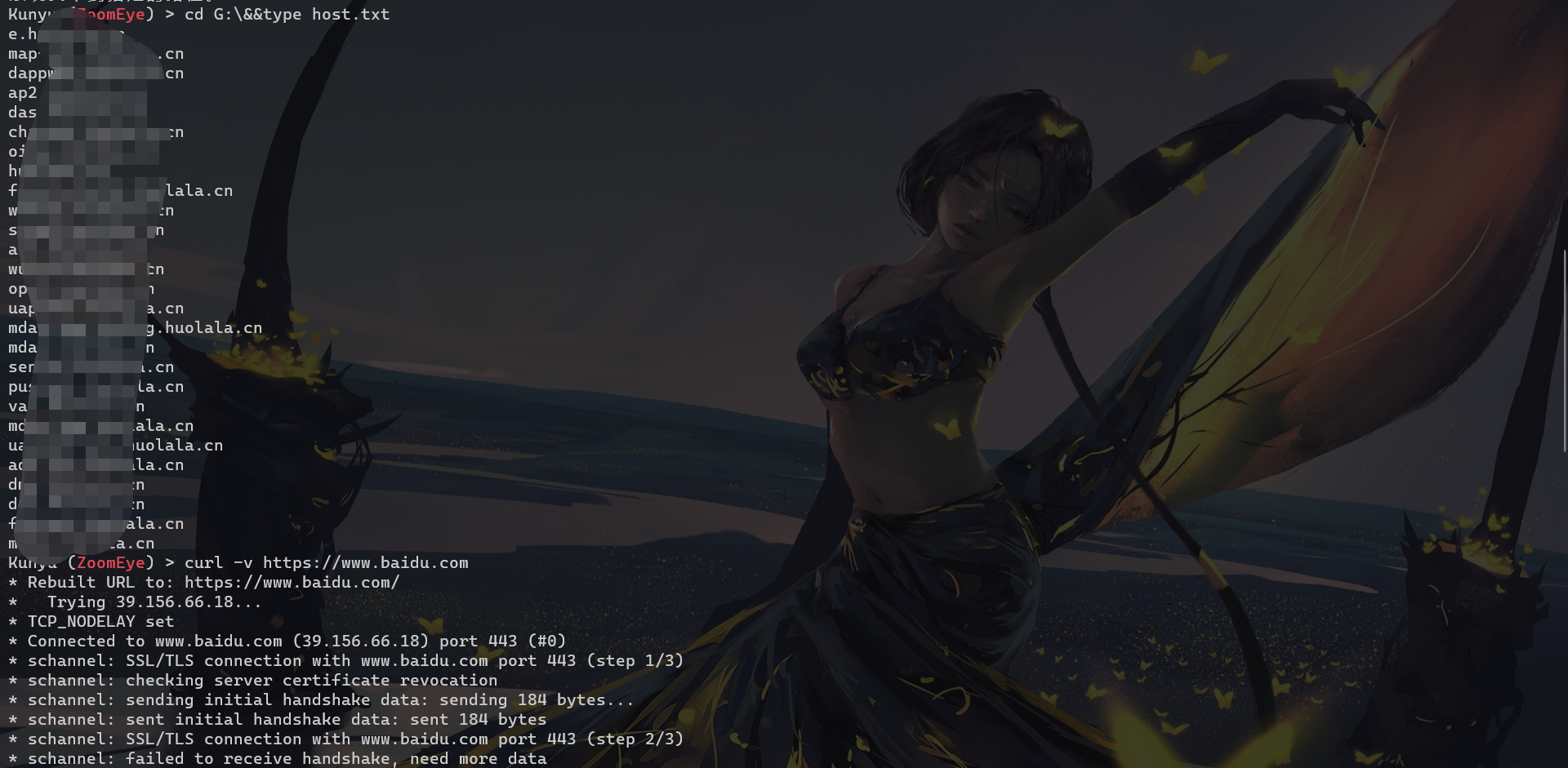

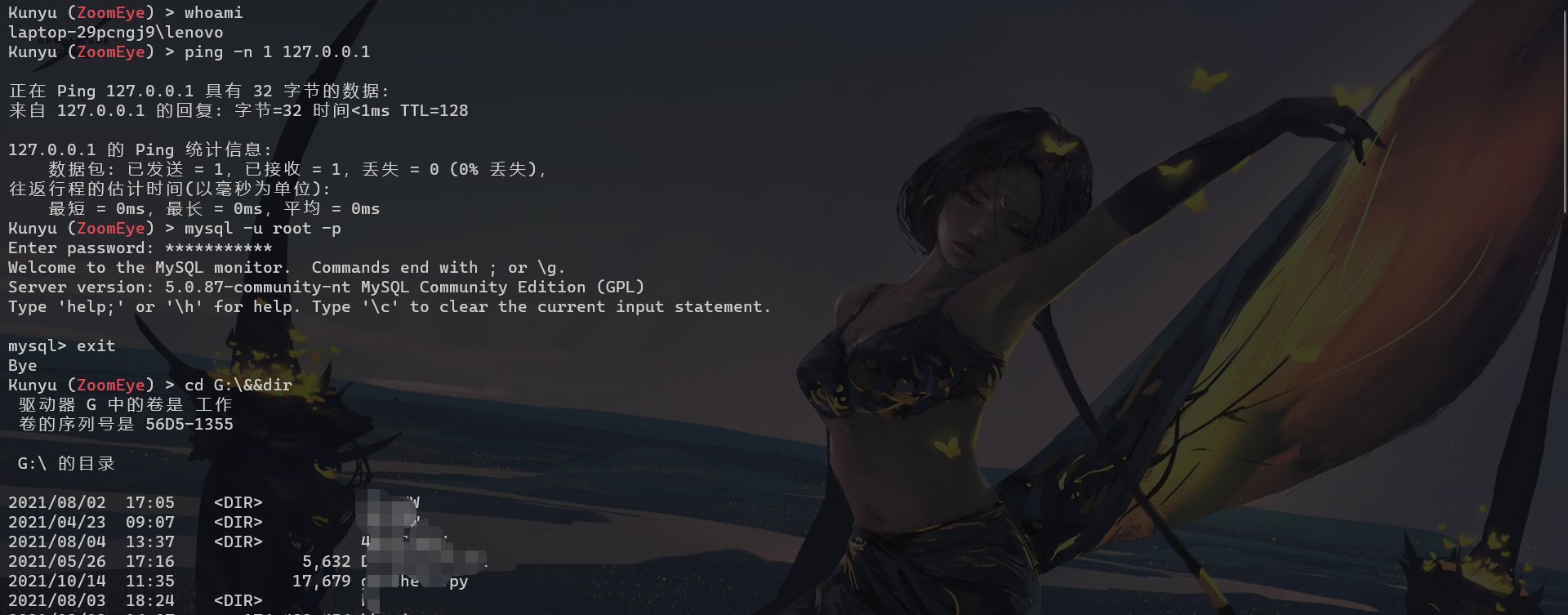

After Kunyu v1.6.0, support for the execution of system commands has been added. You can debug surveying and mapping data more conveniently and effectively by executing some commonly used system commands. For a list of specific executable commands, see Article 11 in the Issue of the README file.

Example One

**Example two **

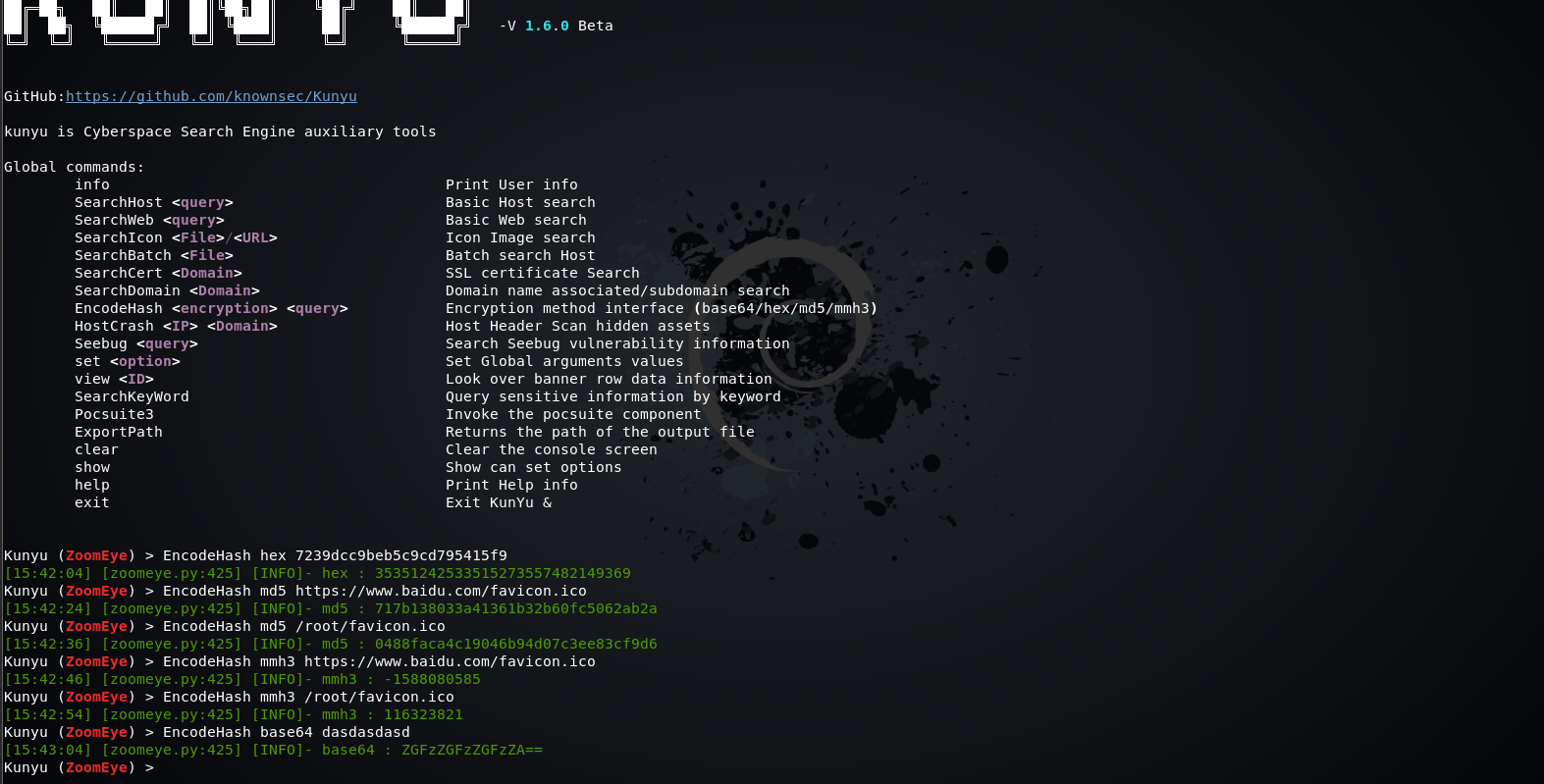

Encoding hash calculation

In some scenarios, you can use this command to perform common HASH encryption/encoding, such as BASE64, MD5, mmh3, HEX encoding, and debug in this way.

Command format:

EncodeHash hex 7239dcc9beb5c9cd795415f9
EncodeHash md5 https://www.baidu.com/favicon.ico
EncodeHash md5 /root/favicon.ico
EncodeHash mmh3 https://www.baidu.com/favicon.ico
EncodeHash mmh3 /root/favicon.ico
EncodeHash base64 dasdasdsa

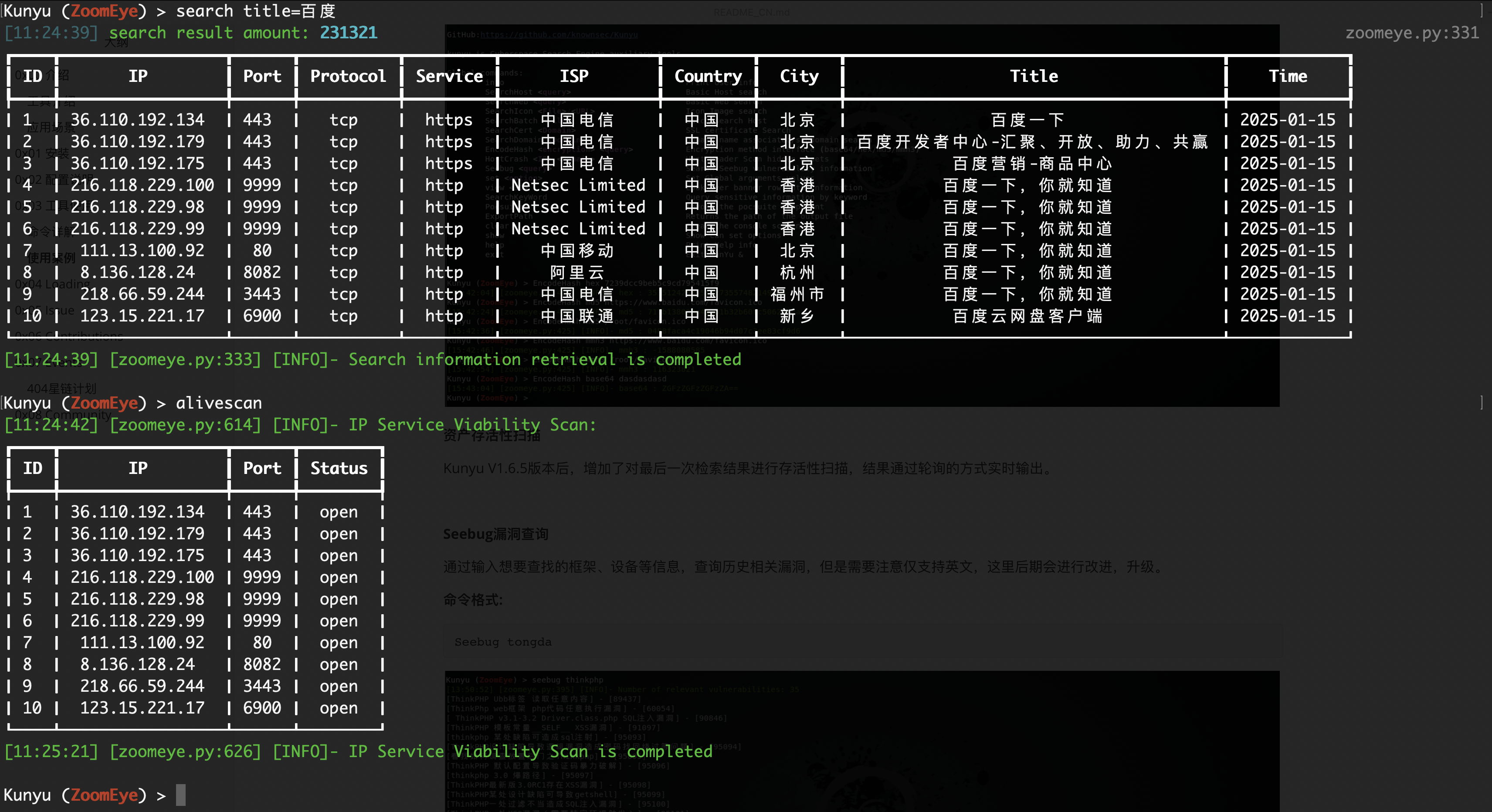

Asset Survival Scan

After Kunyu V1.6.5, the survivability scan of the last retrieval result is added, and the result is output in real time by polling.

Seebug vulnerability query

You can query historical related vulnerabilities by entering information about the framework and equipment you want to find, but you need to note that only English is supported, and improvements and upgrades will be made later.

Command format: Seebug tongda

Load fingerprint file

Kunyu V1.6.4 adds the function of loading an external fingerprint library. Kunyu provides 5 fingerprint files as a reference by default. Users can write their own fingerprint files to load or share, and retrieve them more flexibly, which is convenient for traceability and security. Resource sharing in research and red team offense and defense, enhance teamwork.

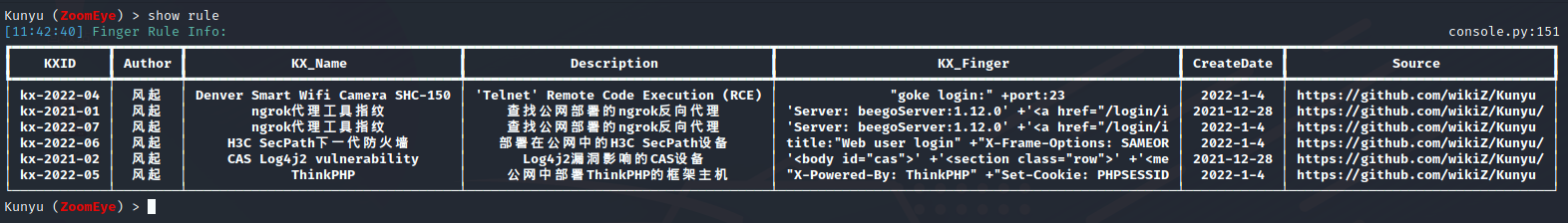

You can view the information of the currently loaded fingerprint library through the show rule command.

The default read fingerprint file directory is under project directory/kunyu/rule, you can customize the read fingerprint file path setting through kunyu init --rule C:\风起\rule.

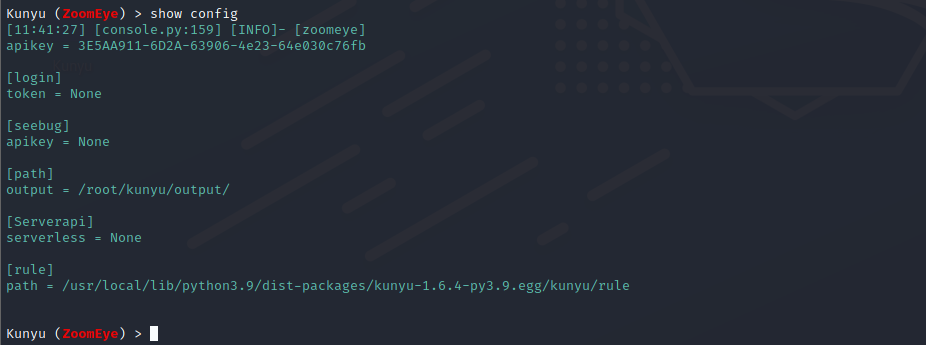

You can use the show config command to view the information of the Kunyu configuration file.

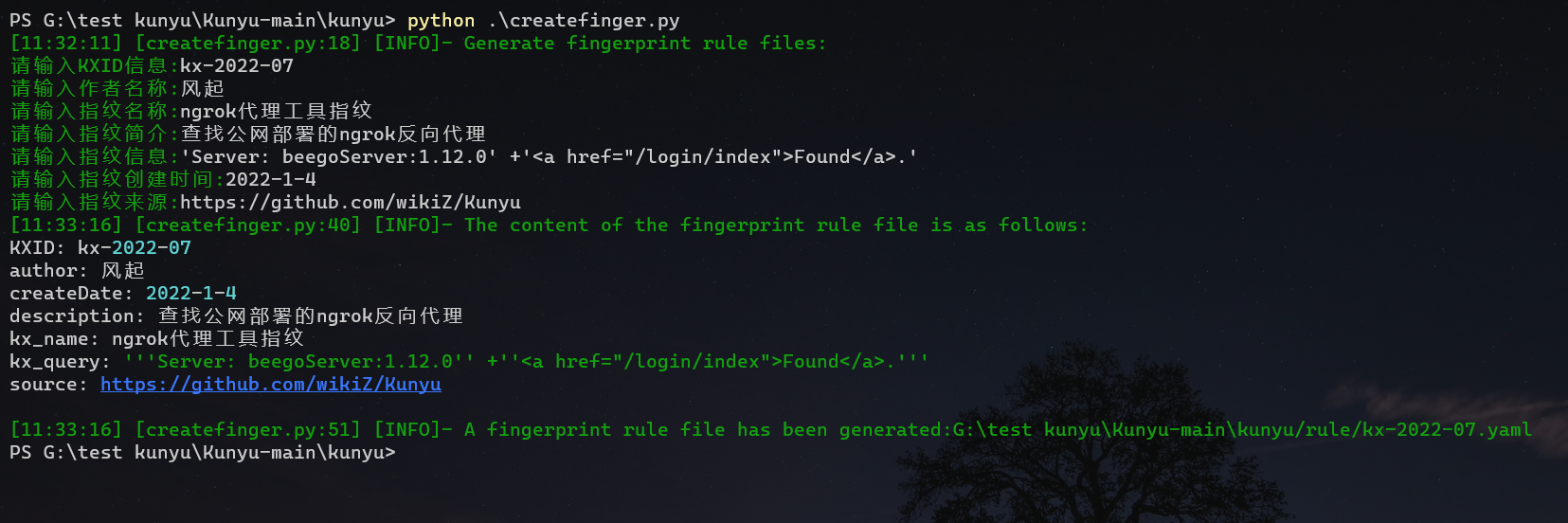

When faced with complex fingerprint information, you can generate a yaml file through project directory/kunyu/createrule.py

The format of the yaml fingerprint file is as follows. Please note that the following standard format must be strictly followed, and no fields are missing.

KXID: kx-2022-07
author: 风起
createDate: 2022-1-4
description: 查找公网部署的ngrok反向代理
kx_name: ngrok代理工具指纹
kx_query: '''Server: beegoServer:1.12.0'' +''<a href="/login/index">Found</a>.'''
source: https://github.com/wikiZ/Kunyu

Setting parameters

When set page = 2, the returned results are 40. You can modify the page parameter to set the number of pages to be queried. Note that 1 page = 20/items. You can modify the value according to your needs to get more returned results.

The configurable parameters and the current values of the parameters are displayed through show.

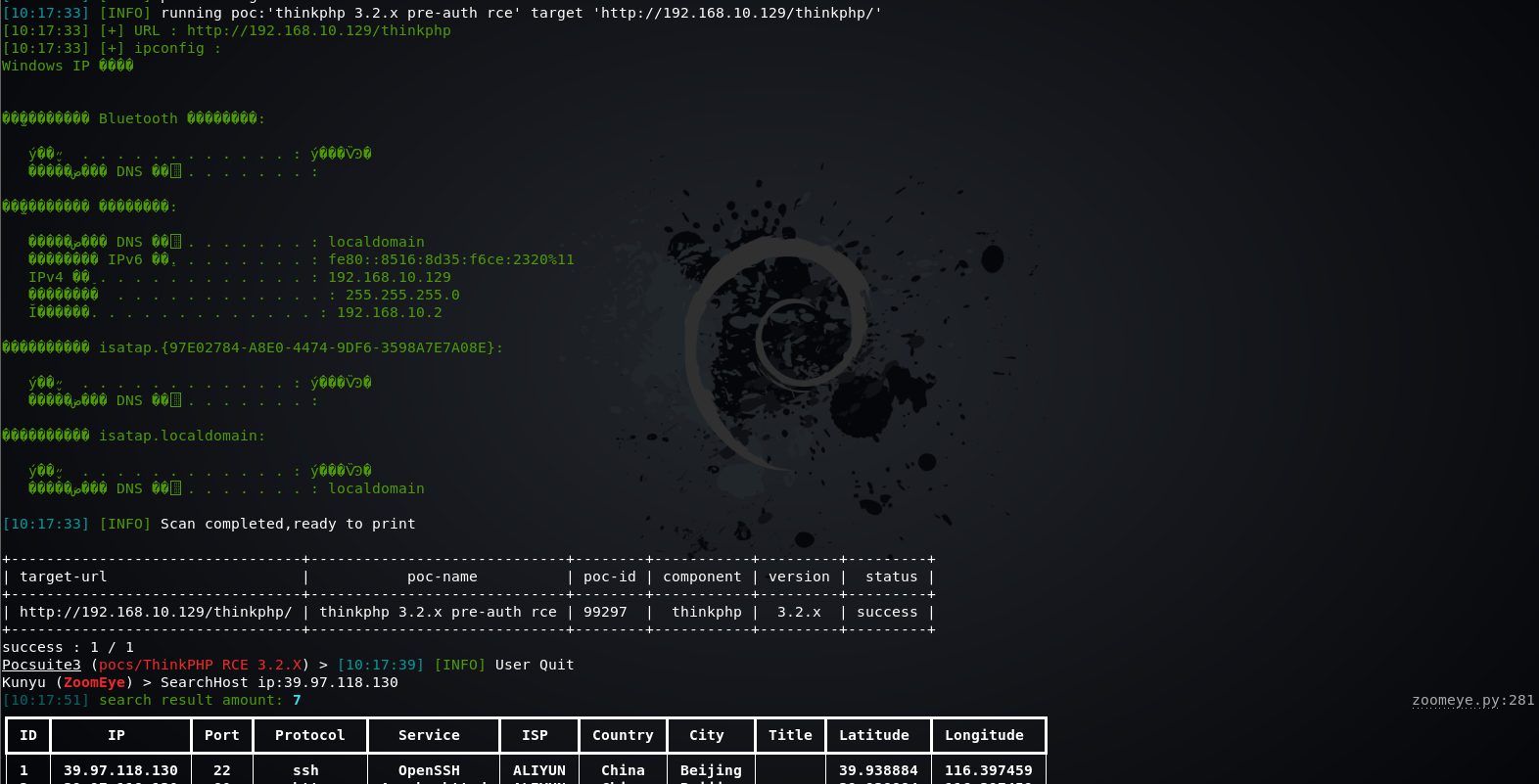

Pocsuite linkage

In versions after v1.3.1, you can use kunyu to link the console mode of pocsuite3 for integrated use.

HOSTS head collision

Through HOSTS collision, the hidden assets in the intranet can be effectively collided. According to the ServerName domain name and IP configured in the middleware httpf.conf, the access can be directly connected to the intranet business system! Follow-up by setting the local hosts file to achieve local DNS resolution, because the priority of the local hosts file is higher than the DNS server resolution. Support reverse check through ZoomEye domain name library or read TXT file to get the list of domain names.

Command format:

HostCrash C:\ip.txt C:\host.txt
HostCrash C:\ip.txt baidu.com
HostCrash 1.1.1.1 baidu.com
HostCrash 1.1.1.1 G:\host.txt

Example One

Example Two

Serverless HostCrash Scan

Kunyu v1.6.2 adds an interesting feature that combines the cloud function to perform HOSTS collisions on the target. In this way, our scanned IP is effectively hidden to prevent it from being captured by the target situational awareness, and it also prevents WAF from banning the real IP. , And conceal the features. Through the following scanning effect, it can be found that the scanned IPs are all cloud service vendors and each scan is a random IP address. You can choose whether to enable it by configuring the cloud function address during initialization.

Configuration Guide: Configuration Method of Cloud Function

**Related technology:**https://www.anquanke.com/post/id/261551

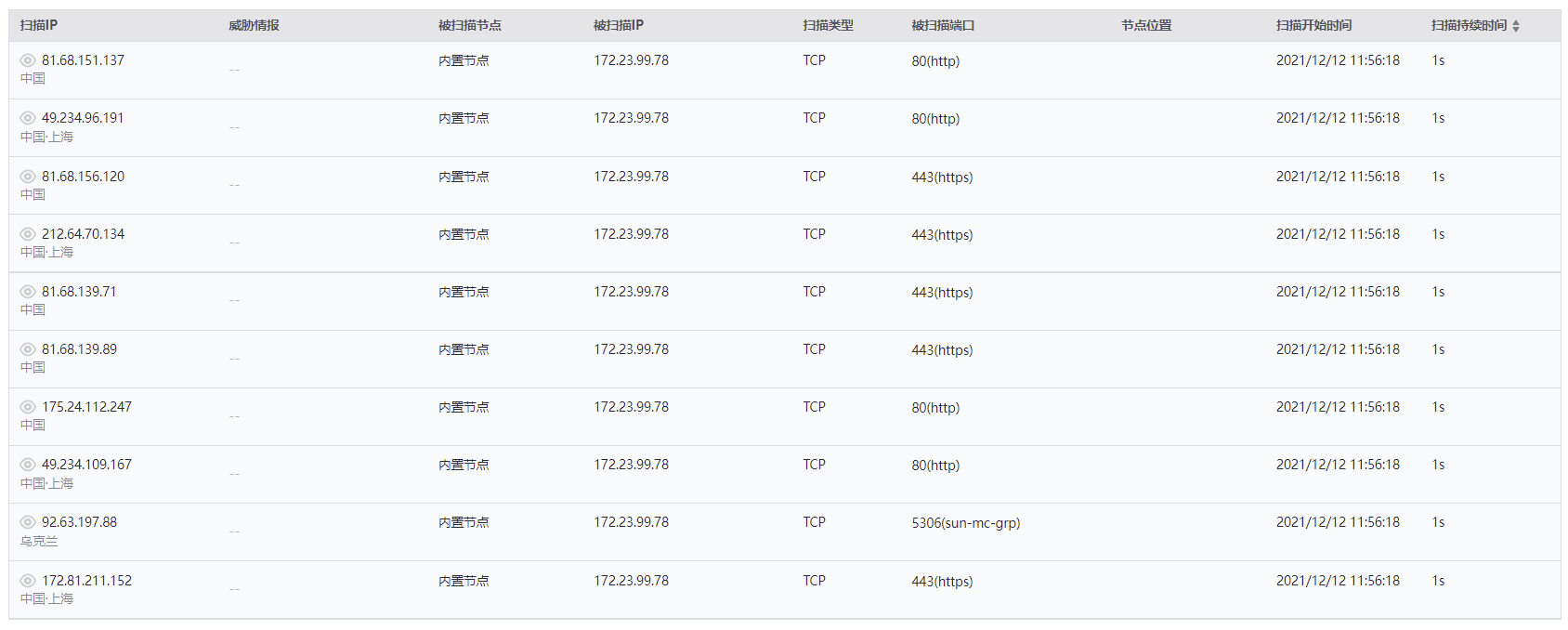

Situational Awareness Scanning Effect:

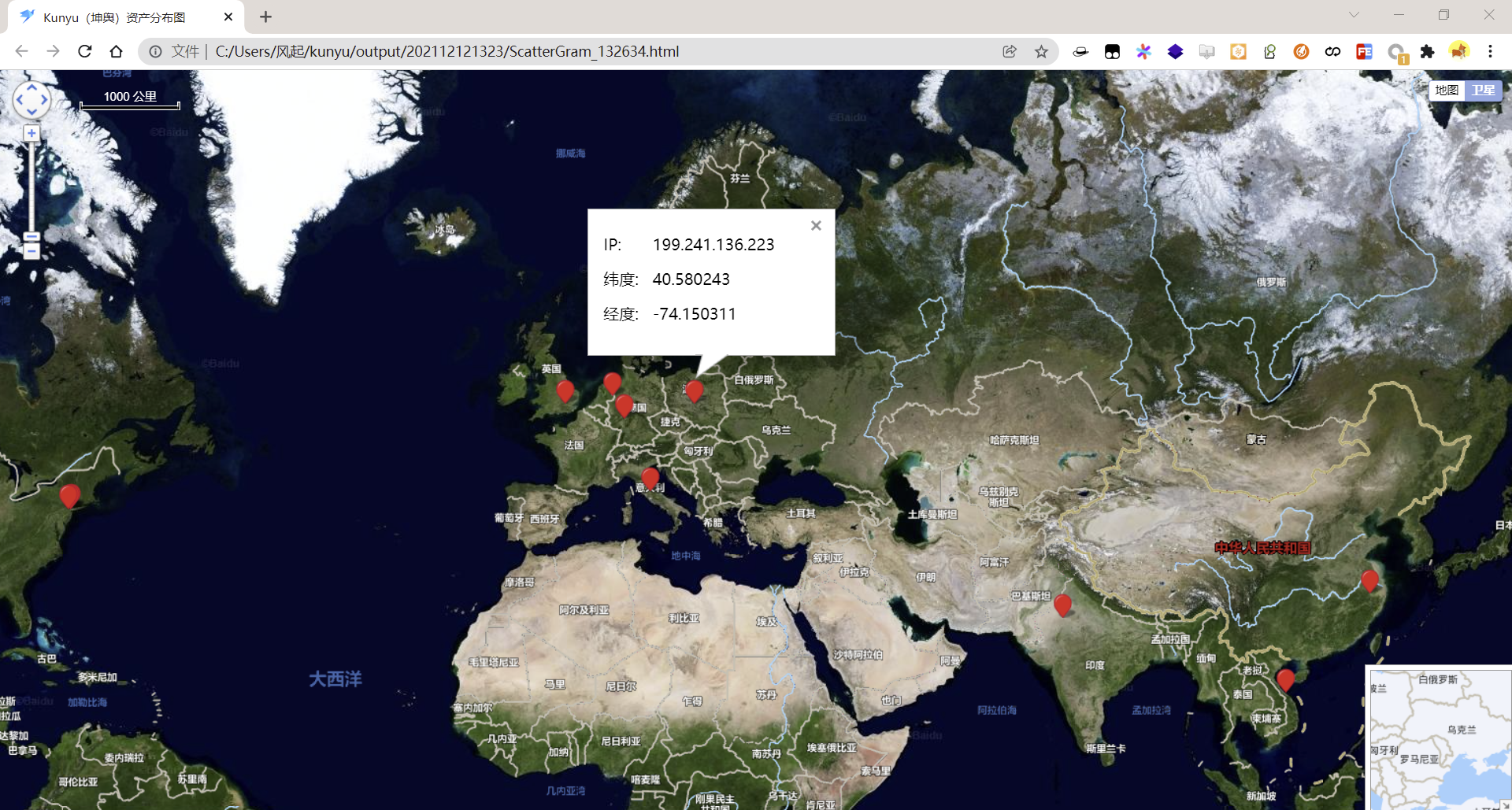

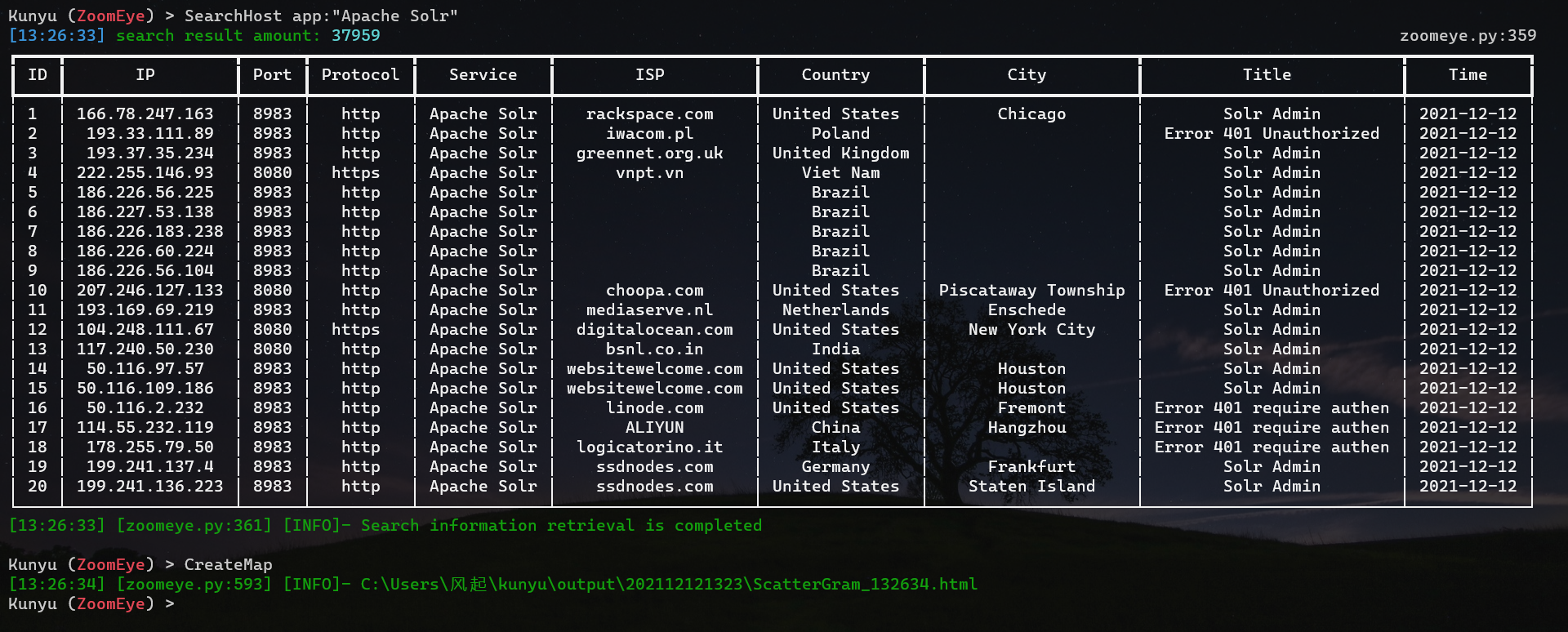

Asset distribution map

v1.6.2 adds the CreateMap command, which can generate a geographic location distribution map for the assets retrieved last time, and more vividly describe the mapping relationship between network space and real space. It is located in the same output directory as Excel, and the generated asset map is the same as the last time. The number of search results is related.

Generate distribution map

Web page

Data result

All search results are saved in the user's root directory, and the directory is created based on the current timestamp. All query results of a single start are stored in an Excel format under one directory, giving a more intuitive experience. The output path can be returned through the ExportPath command.

0x04 Loading

​ In fact, there are still many ideas, but as an Alpha version, this is the case, and it will continue to be improved in the later period. I hope that Kunyu can be known to more security practitioners. Thank you for your support.

​ The tool framework has reference to Kunlun Mirror and Pocsuite3, which are all very good works.

​ About the developer Fengqi(风起) Related articles: https://www.anquanke.com/member.html?memberId=148652

​ Thanks to all the friends of KnownSec 404 Team.

"Seeing clearly" is the embodiment of ability, which is "tool", while "seeing" is the embodiment of thought, and the last thing it is related to is "Tao". ——SuperHei（黑哥）

0x05 Issue

1. Multi-factor search

ZoomEye search can use multi-factor search, dork: cisco +port:80 (note the space) can search for all data that meets the cisco and port:80 conditions. If there is no space in the middle, it is the same search condition, that is, all data that meets cisco and port 80. Kunyu's dork does not need quotation marks, **The new version 2.0 syntax has changed. **

2. High-precision geographic location

ZoomEye gives privileged users high-precision geographic location data, but it should be noted that ordinary users do not have this function, please be aware.

3. Username/password login

If you use username/password as the initialization condition, the token obtained will be valid for 12 hours. If you find that your search cannot return data, you may as well info it. If the session times out, the initialization command prompt will be returned. In most cases, we recommend that you use the API KEY method, and there will be no expiration problem. This design is also for the security of your account and password. After all, the API KEY can be reset and the token will become invalid, but with the account and password, it is possible to log in to your ZoomEye account.

4. Cert certificate search

It should be noted that according to conventional logic, you need to encode the serial number of the target SSL certificate in hexadecimal before searching with the statement, but Kunyu only needs to provide the Domain address to search. The principle is to make a request to the target station to obtain the serial number and process it, but if your host cannot access the target to be searched, it cannot be retrieved. At this time, you can also use the conventional method to search with the statement.

5. Favicon icon search

ico icon search supports both URL search and local ico icon file search, which has better scalability and compatibility.

6. Query data storage path

By default, your query data is in the Kunyu folder under the user directory. You can also use the ExportPath command in console mode to query the path.

7. Auto-completion

Kunyu's auto-completion supports uppercase and lowercase letters, command records, etc. Use Tab to complete. For usage, please refer to Metasploit.

8. About the error when using pip install kunyu

When using pip install kunyu, the following error is reported: File "C:\Users\风起\AppData\Local\Programs\Python\Python37\Scripts\kunyu-script.py", line 1 SyntaxError: Non-UTF-8 code starting with '\xb7' in file C:\Users\风起\AppData\Local\Programs\Python\Python37\Scripts\kunyu-script.py on line 1, but no encoding declared; see http://python.org/dev/peps/pep-0263/ for details

Solution: Modify the C:\Users\风起\AppData\Local\Programs\Python\Python37\Scripts\kunyu-script.py file and add # encoding: utf-8 at the beginning of the file Then save it and it can be used normally. The reason for this bug is that there is a Chinese name in the user directory path, which usually appears on Windows.

9. Pocsuite3 module POC storage directory

When using the pocsuite3 module, if you want to add a new POC module, you can add the POC file in project directory/pocsuite3/pocs/. It should be noted that when using the packaged Kunyu console command, the POC should be added to the directory, and the kunyu program should be repackaged to load the POC normally.

10. Pocsuite3 module POC missing problem

When using the Pocsuite command linkage, if it is a packaged Kunyu version, the poc has been fixed. At this time, modifying the poc directory cannot add a new module. At this time, you can repackage it or use project directory/kunyu/console.py to run kunyu to update the poc module in real time.

**11. Kunyu executable system commands are as follows. **

Windows: OS_SYSTEM = ["ipconfig", "dir", "whoami", "ping", "telnet", "cd", "findstr", "chdir","find", "mysql", "type", "curl", "netstat", "tasklist", "taskkill", "tracert", "del", "ver","nmap","ls"]

Linux/Mac:

OS_SYSTEM = ["ifconfig", "ls", "cat", "pwd", "whoami", "ping", "find", "grep", "telnet", "mysql", "cd", "vi", "more", "less", "curl", "ps", "netstat", "rm", "touch", "mkdir", "uname","nmap"]

12. Kunyu operating environment

It is recommended to use Python3.2 - 3.12. Other versions of Python3 may have unknown errors. Python2 cannot be used.

13. Set timeout

If the HTTP request is not responded to in time, you can solve it by increasing the timeout time, such as: set timeout = 50

14. Kunyu client startup time is long

Since Kunyu2.0 will identify and use domestic and foreign interfaces during the initialization phase, it may take a while to start and use, the time is 5-10 seconds.

15. RULE fingerprint storage location

The RULE fingerprint storage location can be configured and modified under ~/.kunyu.ini, and the default is under the compiled and run kunyu path.

16. View function cannot be used

The view function is in the ZoomEye update, and the business version membership is required to use it normally. The views function is not affected.

17. Abnormal BUG

Since the test environment is MAC OS, there may be incompatibility issues in other operating systems. Please feedback the ISSUE or contact the operation in time.

18. Antivirus software check

Kunyu may fail to start due to antivirus software checking files, please pay attention to this problem

19. I haven't decided yet ^_^
