miloyip/graphvizuml

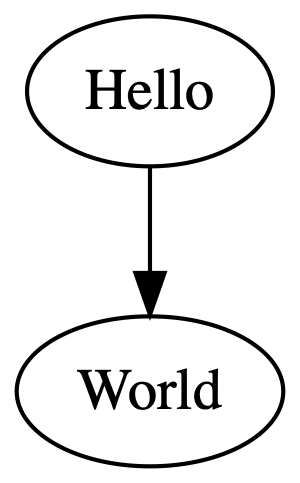

digraph {
    Hello -> World
}

dot -Tpng hello.dot -o hello.png

DOTFILES = $(basename $(wildcard *.dot))

all: \
    $(addsuffix .png, $(DOTFILES)) \
    $(addsuffix .pdf, $(DOTFILES))

%.png: %.dot
    dot $< -Tpng -o $@

%.pdf: %.dot
    dot $< -Tpdf -o $@

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Foo
    Bar
}

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Animal, Mammal, Reptile, Dog, Cat, Snake

    /* inheritance */
    {
        edge [arrowtail=onormal, dir=back]

        Animal -> { Mammal, Reptile }
        Mammal -> { Dog, Cat}
        Reptile -> Snake
    }
}

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Person, Magazine

    /* Association */
    {
        edge [dir=none]
        Person -> Magazine [label=" subscribe"]
    }
}

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]
    edge [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Person, Magazine

    /* Association with multiplicity */
    {
        edge [dir=none]
        Person -> Magazine [label=" subscribe", headlabel="0..10", taillabel="* "]
    }
}

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]
    edge [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Interviewer, Candidate

    /* Unidirection association */
    {
        Interviewer -> Candidate [arrowhead=vee]
    }
}

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]
    edge [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Department, Employeee

    /* Aggregation */
    {
        edge [dir=back, arrowtail=odiamond, headlabel="* "]
        Department -> Employeee
    }
}

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]
    edge [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Company, Department, Employeee

    /* Composition */
    {
        edge [dir=back, arrowtail=diamond, headlabel="* "]
        Company -> Department
    }

    /* Aggregation */
    {
        edge [dir=back, arrowtail=odiamond, headlabel="* "]
        Department -> Employeee
    }
}

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]
    edge [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Factory, Product

    /* Dependency */
    {
        edge [arrowhead=vee, style=dashed]
        Factory -> Product [label=" <<create>>"]
    }
}

<visibility> <attribute name> : <type>

<visibility> <method name> (<param1 name> : <param1 type>, ...) : <return type>

class Account {
public:
    void Deposite(int amount);
    void Withdraw(int amount);
    int GetAmount();
protected:
    int balance;
private:
    string owner;
};

digraph {
    node [shape=record, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Account [label="{
Account
|
# balance : int\l
- owner : string\l
|
+ Deposite(amount : int)\l
+ Withdraw(amount : int)\l
+ GetBalance() : int\l
}"]

}

digraph {
    node [shape=plaintext, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Account [label=<
<table border="0" cellborder="1" cellspacing="0">
<tr><td align="left" balign="left">
# balance : int<br/>
- owner : string<br/>
</td></tr>
<tr><td>Account</td></tr>
<tr><td align="left" balign="left">
+ Deposite(amount : int)<br/>
+ Withdraw(amount : int)<br/>
+ GetBalance() : int<br/>
</td></tr>
</table>
>]

}

digraph {
    graph [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5,
        labeljust=left]
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]
    edge [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    subgraph clusterView {
        label="View"
        AccountView, CustomerView
    }

    subgraph clusterModel {
        label="Model"
        Account, Customer
    }

    /* Unidirecitonal association */
    {
        edge [arrowhead=vee]
        AccountView -> Account
        CustomerView -> Customer
    }
}

digraph {
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    Canvas, Shape, Rectangle, Circle

    /* Inheritance */
    {
        edge [arrowtail=onormal, dir=back]
        Shape -> { Rectangle, Circle }
    }

    /* Composition */
    {
        edge [dir=back, arrowtail=diamond, headlabel="* "]
        Canvas -> Shape
    }
}

digraph {
    graph [nodesep=1]
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    {
        rank=same
        Canvas, Shape
    }

    Rectangle, Circle

    /* inheritance */
    {
        edge [arrowtail=onormal, dir=back]
        Shape -> { Rectangle, Circle }
    }

    /* composition */
    {
        edge [dir=back, arrowtail=diamond, headlabel="* "]
        Canvas -> Shape
    }
}

digraph {
    graph [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5, labeljust=left]
    node [shape=box, fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5,
        style=filled, colorscheme=spectral7]
    edge [fontname="Inconsolata, Consolas", fontsize=10, penwidth=0.5]

    subgraph clusterView {
        label="View"
        node [fillcolor=4]
        AccountView, CustomerView
    }

    subgraph clusterModel {
        label="Model"
        node [fillcolor=6]
        Account, Customer
    }

    /* Unidirecitonal association */
    {
        edge [arrowhead=vee]
        AccountView -> Account
        CustomerView -> Customer
    }
}
