InternImage: Large-Scale Vision Foundation Model

The official implementation of

InternImage: Exploring Large-Scale Vision Foundation Models with Deformable Convolutions.

[Paper] [Blog in Chinese]

Highlights

• :thumbsup: The strongest open-source visual universal backbone model with up to 3 billion parameters
• 🏆 Achieved 90.1% Top1 accuracy in ImageNet, the most accurate among open-source models
• 🏆 Achieved 65.5 mAP on the COCO benchmark dataset for object detection, the only model that exceeded 65.0 mAP

News

• Jan 22, 2024: 🚀 Support DCNv4 in InternImage!
• Feb 28, 2023: 🚀 InternImage is accepted to CVPR 2023!
• Nov 18, 2022: 🚀 InternImage-XL merged into BEVFormer v2 achieves state-of-the-art performance of 63.4 NDS on nuScenes Camera Only.
• Nov 10, 2022: 🚀 InternImage-H achieves a new record 65.4 mAP on COCO detection test-dev and 62.9 mIoU on ADE20K, outperforming previous models by a large margin.

History

• Models for other downstream tasks
• Support CVPR 2023 Workshop on End-to-End Autonomous Driving, see here
• Support extracting intermediate features, see here
• Low-cost training with DeepSpeed, see here
• Compiling-free .whl package of DCNv3 operator, see here
• InternImage-H(1B)/G(3B)
• TensorRT inference for classification/detection/segmentation models
• Classification code of the InternImage series
• InternImage-T/S/B/L/XL ImageNet-1K pretrained model
• InternImage-L/XL ImageNet-22K pretrained model
• InternImage-T/S/B/L/XL detection and instance segmentation model
• InternImage-T/S/B/L/XL semantic segmentation model

Introduction

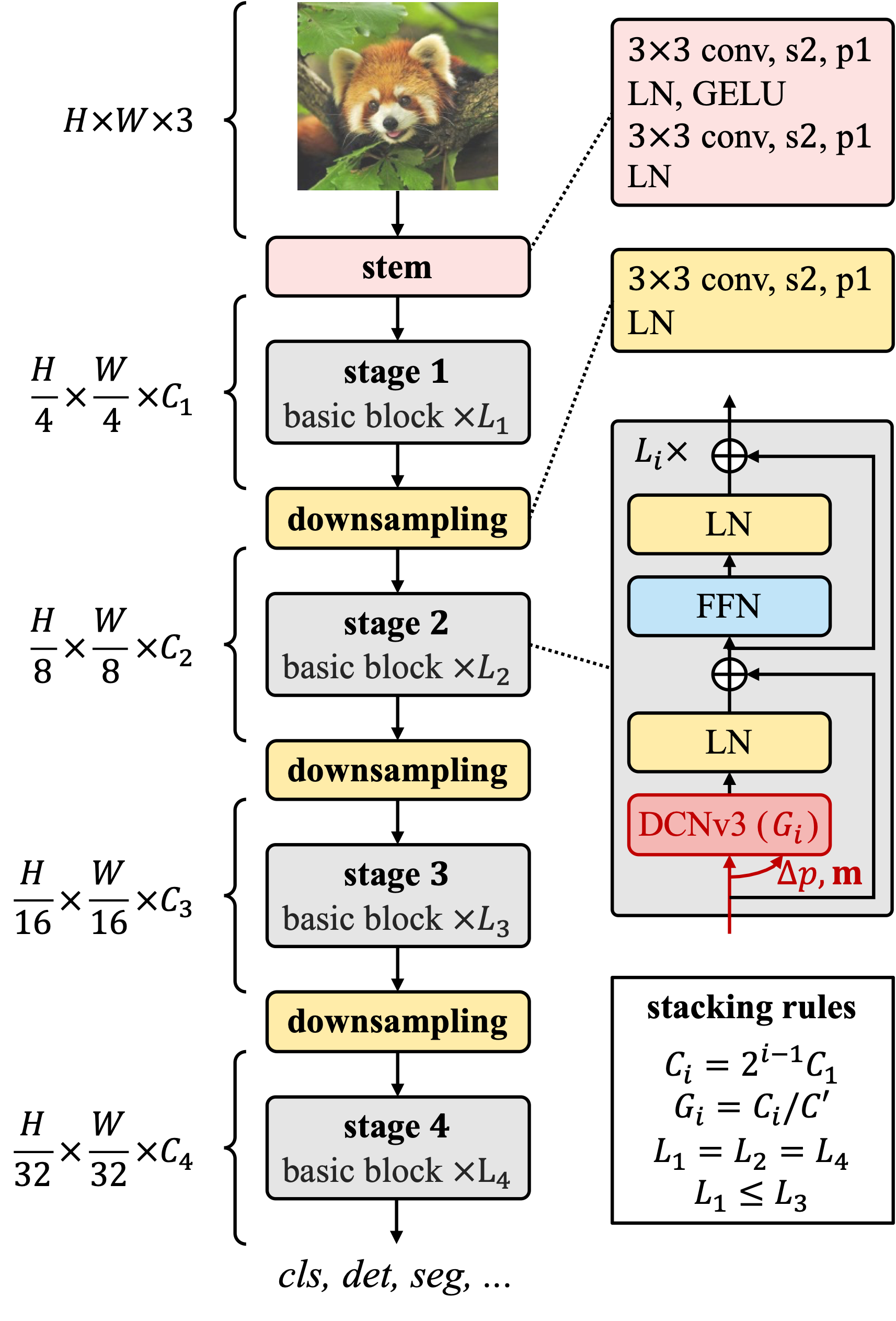

InternImage is an advanced vision foundation model developed by researchers from Shanghai AI Laboratory, Tsinghua University, and other institutions. Unlike models based on Transformers, InternImage employs DCNv3 as its core operator. This approach equips the model with dynamic and effective receptive fields required for downstream tasks like object detection and segmentation, while enabling adaptive spatial aggregation.

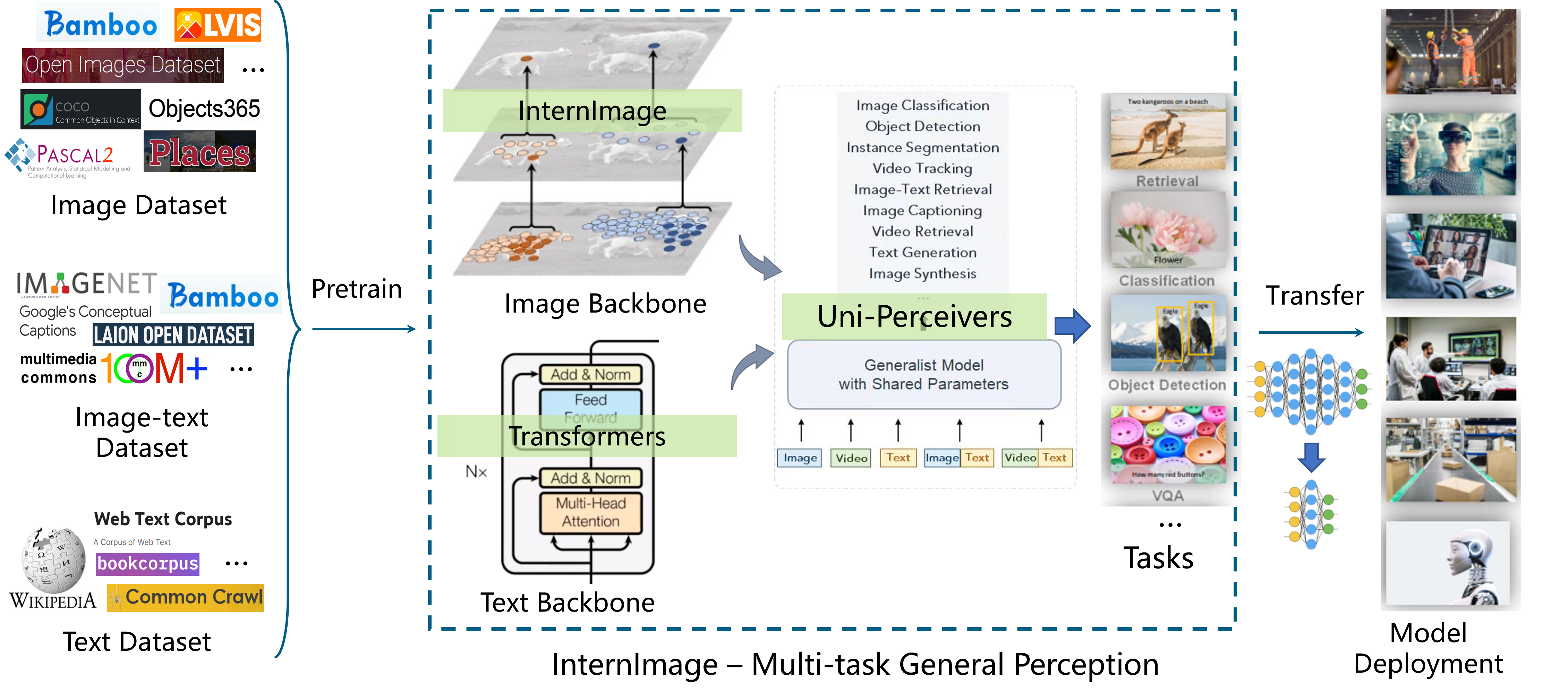

Some other projects related to InternImage include the pretraining algorithm "M3I-Pretraining," the general-purpose decoder series "Uni-Perceiver," and the autonomous driving perception encoder series "BEVFormer."

Performance

• InternImage achieved an impressive Top-1 accuracy of 90.1% on the ImageNet benchmark dataset using only publicly available data for image classification. Apart from two undisclosed models trained with additional datasets by Google and Microsoft, InternImage is the only open-source model that achieves a Top-1 accuracy of over 90.0%, and it is also the largest model in scale worldwide.
• InternImage outperformed all other models worldwide on the COCO object detection benchmark dataset with a remarkable mAP of 65.5, making it the only model that surpasses 65 mAP in the world.
• InternImage also demonstrated world's best performance on 16 other important visual benchmark datasets, covering a wide range of tasks such as classification, detection, and segmentation, making it the top-performing model across multiple domains.

Classification

Detection

Segmentation

Released Models

export MMDEPLOY_DIR=/the/root/path/of/MMDeploy

# prepare our custom ops, you can find it at InternImage/tensorrt/modulated_deform_conv_v3
cp -r modulated_deform_conv_v3 ${MMDEPLOY_DIR}/csrc/mmdeploy/backend_ops/tensorrt

# build custom ops
cd ${MMDEPLOY_DIR}
mkdir -p build && cd build
cmake -DCMAKE_CXX_COMPILER=g++-7 -DMMDEPLOY_TARGET_BACKENDS=trt -DTENSORRT_DIR=${TENSORRT_DIR} -DCUDNN_DIR=${CUDNN_DIR} ..
make -j$(nproc) && make install

# install the mmdeploy after building custom ops
cd ${MMDEPLOY_DIR}
pip install -e .

Related Projects

Foundation Models

• Uni-Perceiver: A Pre-training unified architecture for generic perception for zero-shot and few-shot tasks
• Uni-Perceiver v2: A generalist model for large-scale vision and vision-language tasks
• M3I-Pretraining: One-stage pre-training paradigm via maximizing multi-modal mutual information
• InternVL: A leading multimodal large language model excelling in tasks such as OCR, multimodal reasoning, and dialogue

Autonomous Driving

• BEVFormer: A cutting-edge baseline for camera-based 3D detection
• BEVFormer v2: Adapting modern image backbones to Bird's-Eye-View recognition via perspective supervision

Application in Challenges

• 2022 Waymo 3D Camera-Only Detection Challenge: BEVFormer++ ranks 1st based on InternImage
• nuScenes 3D detection: BEVFormer v2 achieves SOTA performance of 64.8 NDS on nuScenes Camera Only
• CVPR 2023 Workshop End-to-End Autonomous Driving: InternImage supports the baseline of the 3D Occupancy Prediction Challenge and OpenLane Topology Challenge

Citation

If this work is helpful for your research, please consider citing the following BibTeX entry.

@inproceedings{wang2023internimage,
  title={Internimage: Exploring large-scale vision foundation models with deformable convolutions},
  author={Wang, Wenhai and Dai, Jifeng and Chen, Zhe and Huang, Zhenhang and Li, Zhiqi and Zhu, Xizhou and Hu, Xiaowei and Lu, Tong and Lu, Lewei and Li, Hongsheng and others},
  booktitle={Proceedings of the IEEE/CVF conference on computer vision and pattern recognition},
  pages={14408--14419},
  year={2023}
}
