openwrt/firmware-selector-openwrt-org

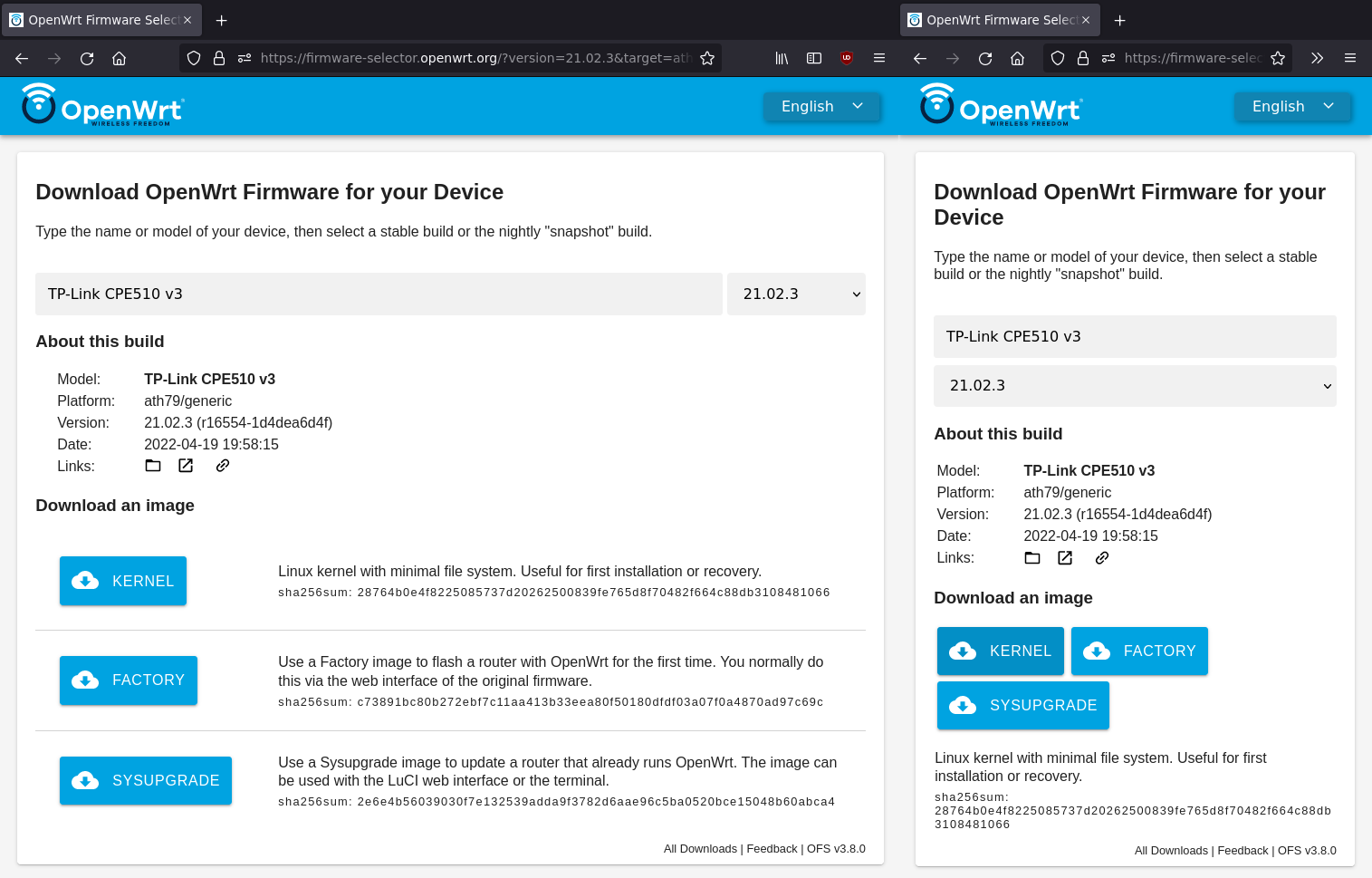

OpenWrt Firmware Selector

A simple OpenWrt firmware selector using autocompletion. Uses plain HTML/CSS/JavaScript. Checkout the Demo.

Quick Run

• Download the sources and change the working directory
• Start webserver (e.g. python3 -m http.server)
• Go to http://localhost:8000/www/ in your web browser

Configure with config.js.

Installation

Steps:

1. Place the www/ folder somewhere web accessible.
2. Set image_url in www/config.js to where the images are located.
   Example: https://downloads.openwrt.org
3. Organize the images like on downloads.openwrt.org.
   Example: https://downloads.openwrt.org/releases/23.05.4/targets/ramips/mt7621/openwrt-23.05.4-ramips-mt7621-dlink_dir-1935-a1-squashfs-sysupgrade.bin
   (path scheme is <image_url>/releases/<version>/targets/<target>/<subtarget>/)
4. Place a single .versions.json at image_path. This is optional.
   Example: https://downloads.openwrt.org/.versions.json

{
  "stable_version": "23.05.4",
  "versions_list": ["23.05.4", "19.07.10"]
}

Note: These values can be overwritten with versions and default_version in the config.js file.

5. Place .overview.json files in each version folder.
   Example: https://downloads.openwrt.org/releases/23.05.4/.overview.json

They can be generated by this shell command:

for VERSION_PATH in 19.07.10/ 23.05.4/; do
  jq -s '{ release: .[0].version_number, profiles: [.[] | .target as $target | .profiles | keys[] as $k | { id: ($k), titles: (.[$k] | .titles), target: $target }] }' $(find "$VERSION_PATH" -iname 'profiles.json') > $VERSION_PATH/.overview.json
done

Generate OpenWrt JSON

The .overview.json file for a version is created from all profile.json files that are generated by OpenWrt when images are created. To enable generation, go to the build settings (make menuconfig): Global build settings ---> [*] Create JSON info files per build image.

If the option is not available (OpenWrt 18.06 or 19.07.3), apply commit openwrt/openwrt@881ed09.

Attended SysUpgrade (ASU)

ASU is a build server that builds OpenWrt images with a given list of packages on request. The firmware-selector can be used as an interface to send these requests and to download the images when finished.

Optional extra package repositories (ASU)

Additional package feeds can be configured via config.js and are sent with each ASU build request:

• asu_repositories: Object map of repository names to URLs.
• asu_repositories_mode: Optional mode (append or replace).
• asu_repository_keys: Optional list of repository signing keys.

Repository URLs can use placeholders which are resolved per selected device/version:

• {openwrt_branch} (for example 24.10)
• {openwrt_version} (for example 24.10.3)
• {target} (for example ramips)
• {subtarget} (for example mt7621)

Optional extra packages per device (ASU)

At startup the selector requests device_packages.json next to the app (under www/). If the file is missing or invalid, it is ignored. The JSON object maps device profile IDs (the same strings as in OpenWrt’s profiles.json, usually vendor,model) to a list of extra package names. Those packages are appended when the ASU package field is prefilled, after the image’s default packages, profile device_packages, and asu_extra_packages from config.js.

Copy www/device_packages.json.example to www/device_packages.json and adjust it for your deployment. Keys may use either comma or underscore as the first separator; the code tries both so tplink,archer-c7-v5 and tplink_archer-c7-v5 can match the same entry depending on how the ID is spelled.

UCI-Defaults

The Firmware Selector allows to define a script to be placed in the /etc/uci-defaults/ folder of the OpenWrt image. These scripts are executed once on the first reboot and then deleted. See the OpenWrt documentation on this topic.

Testing

Run JavaScript unit tests (requires Node.js 18+):

node --test 'tests/js/*.test.js'

Or via yarn:

yarn run test:unit

With test coverage:

yarn run test:coverage

Translations

Visit weblate.org to contribute new translations or to improve them.

Similar Projects

• Gluon Firmware Selector: For Gluon images, now with pictures.
• Freifunk Hennef Firmware Downloader: Similar to the project above, but PHP based.
• LibreMesh Chef: Allows to select configurations.
• GSoC Firmware Selector: Result of the GSoC
• FFB Firmware Selector: Build for Freifunk Bielefeld
